Every 10 Hours

Chains

TS284-UN-23AUG88

Liberally apply SAE 30 or heavier oil to chains every 10 hours of operation.

Lubricate chains immediately after operation when the chains are still warm. Let the machine stand idle for a short period to ensure effective oil penetration, resulting in longer chain life.

PTO Driveline

PTO driveline lubrication points are shown on diagram (A) and on PTO shield.

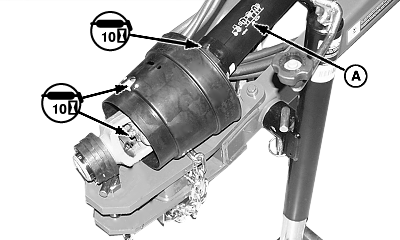

E53983-UN-17DEC04

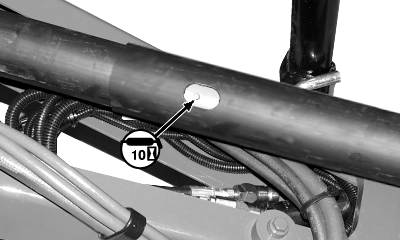

E53984-UN-17DEC04

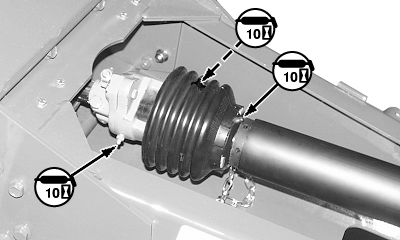

E53982-UN-17DEC04

Shearbolt

A - Diagram

Tension Arm and Cylinder Pivots (Twine Baler)

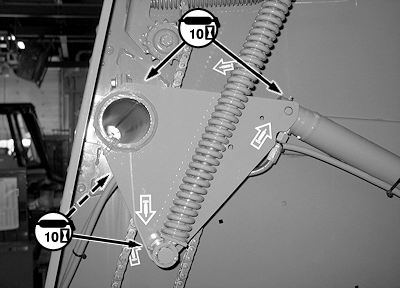

E58906-UN-10AUG10

Left-Hand Side

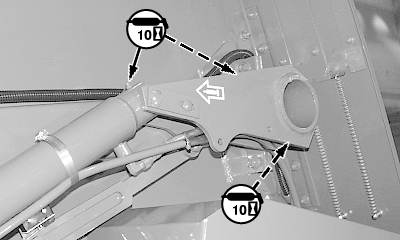

E54034-UN-06JAN05

Right-Hand Side

Lubricate tension arm and cylinder pivots on both sides of machine.

Tension Arm and Pivots Cylinder (Net Wrap Baler)

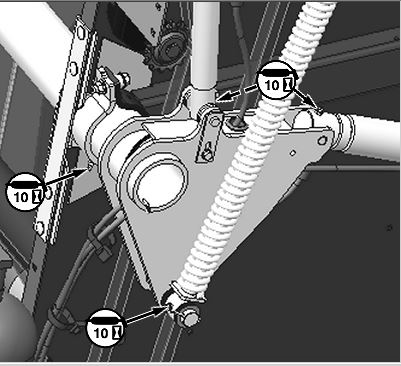

E79941-UN-21SEP15

Left Side Shown

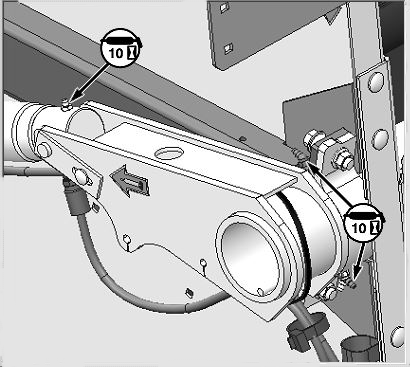

E79940-UN-21SEP15

Right Side Shown

Lubricate tension arm and cylinder pivots on both sides of machine.
