John Deere Round Baler Safety Features

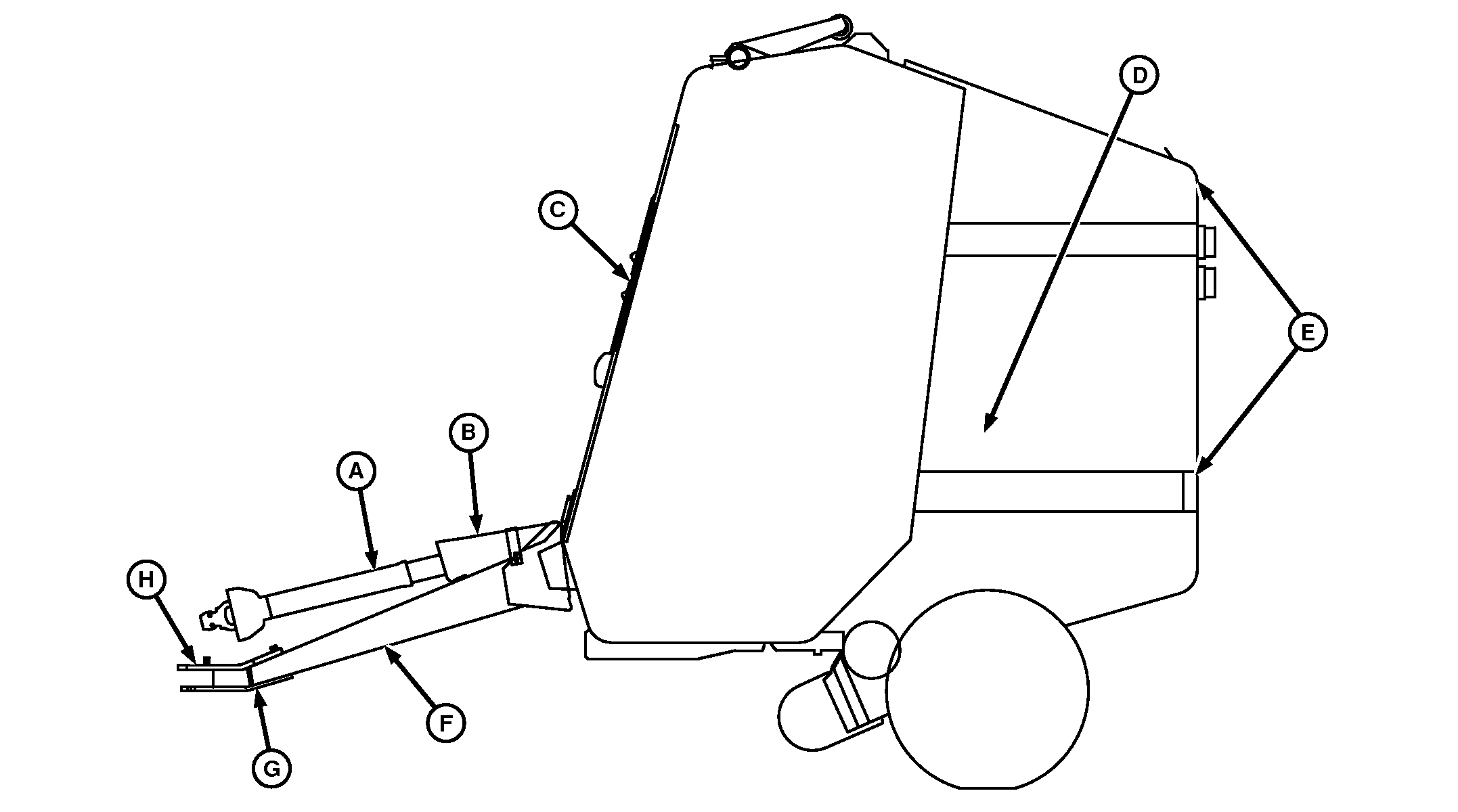

E54678-UN-22JUN06

Shielded drives/protection from drive components

A — Fully shielded power take-off

B — Hinged shielding covers rotating input shaft. Provides easy service access.

C — Fire extinguisher mounting location to accommodate installation of extinguisher where use conditions dictate.

D — Rear gate lockout secures gate in open position for access to inside of bale chamber.

E — Slow moving vehicle (SMV) emblem, flashing warning lights, red tail lamps and reflectors enhance visibility during road transport. Flashing warning lights synchronize with tractor turn signals to indicate turn intention to vehicular traffic.

F — Hitch jackstand supports and positions hitch for hook-up and removal.

G — Safety chain further secures machine to tractor drawbar.

H — Drawbar hitch pin retainer keeps implement hitch pin in place.
