Install PTO Driveline

1.

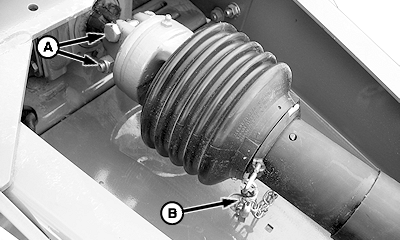

   E57062-UN-23APR09

   A - Lock Nuts, M12

   B - Chain

   Install yoke on input shaft. Fasten with two M12 x 65 cap screws and M12 lock nuts (A). Install cap screws opposite each other, as shown.

---




2. Attach chain (B) to PTO shield to prevent shield from rotating.
