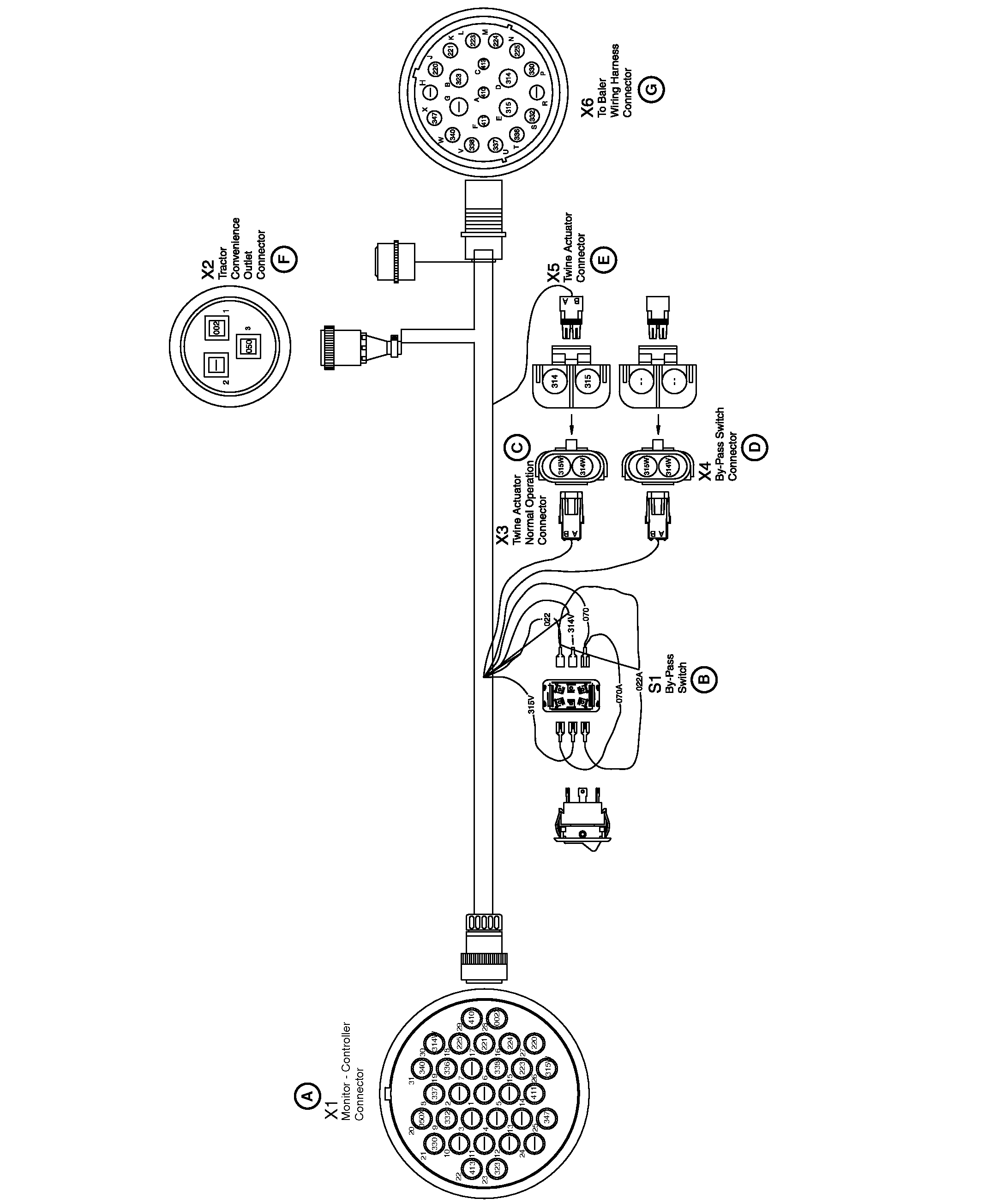

Wire Harness Diagram—BaleTrak™ Pro Monitor-Controller

E57278-UN-02JUN09

If the baler is equipped with a soft core valve, pin X and W are used.

X1 BaleTrak™ Pro Monitor-Controller Connector
Terminal	Circuit	Function	Wire Color
1		Open
2		Open
3		Open
4		Open
5		Open
6	338	Not Used	Gray
7		Open
8	337	Not Used	Purple
9	332	Not Used	Red
10		Open
11		Open
12		Open
13		Open
14	411	Not Used
15	223	Right Gate Closed Switch	Orange
16	224	Oversize Switch	Yellow
17	221	Left Gate Closed Switch	Brown
18	225	Not Used	Green
19	336	Bale Size Sensor	Blue
20	050X	Ground	Black
21	330	Not Used	Black
22	413	Not Used	Orange
23	323	Not Used	Orange
24		Open
25	347	Not Used	Purple
26	315W	Twine Actuator	Green
27	220	Switch Ground	Black
28	002X	Power	Red
29	410	Not Used	Black
30	314W	Twine Actuator	Yellow
31	340	Not Used	Black

X2 Tractor Convenience Outlet Connector
Terminal	Circuit	Function	Wire Color
1	002	Power	Red
2		Open
3	050	Ground	Black

X3 Twine Actuator Normal Operation Connector
Terminal	Circuit	Function	Wire Color
A	314W	Twine Actuator	Yellow
B	315W	Twine Actuator	Green

X4 By-Pass Switch Connector
Terminal	Circuit	Function	Wire Color
A	314V	Twine Actuator	Yellow
B	315V	Twine Actuator	Green

X5 Twine Actuator Connector
Terminal	Circuit	Function	Wire Color
A	314	Twine Actuator	Yellow
B	315	Twine Actuator	Green

X6 To Baler Wire Harness Connector
Terminal	Circuit	Function	Wire Color
A	410	Not Used	Black
B	323	Not Used	Orange
C	413	Not Used	Orange
D	314	Twine Actuator	Yellow
E	315	Twine Actuator	Green
F	411	Not Used	Brown
G		Open
H		Open
J	220	Ground	Black
K	221	Left Gate Closed Switch	Brown
L	223	Right Gate Closed Switch	Orange
M	224	Oversize Bale Switch	Yellow
N	225	Not Used	Green
P	330	Ground	Black
R		Open
S	332	Not Used	Red
T	336	Bale Diameter Sensor	Blue
U	337	Not Used	Purple
V	338	Not Used	Gray
W1	340	Ground	Black
X1	347	Not Used	Purple

S1 By-Pass Switch Connector
Terminal	Circuit	Function	Wire Color
—	315V	Twine Actuator	Green
—	070A	Ground	Black
—	022A	Power	Red
—	070	Ground	Black
—	314V	Twine Actuator	Yellow
—	022	Ground	Black

Auxiliary Wire Harness For Soft Core Attachment
Terminal	Circuit	Function	Wire Color
W	340	Ground for Variable Core Solenoid	Black
X	347	Power for Variable Core Solenoid	Purple
