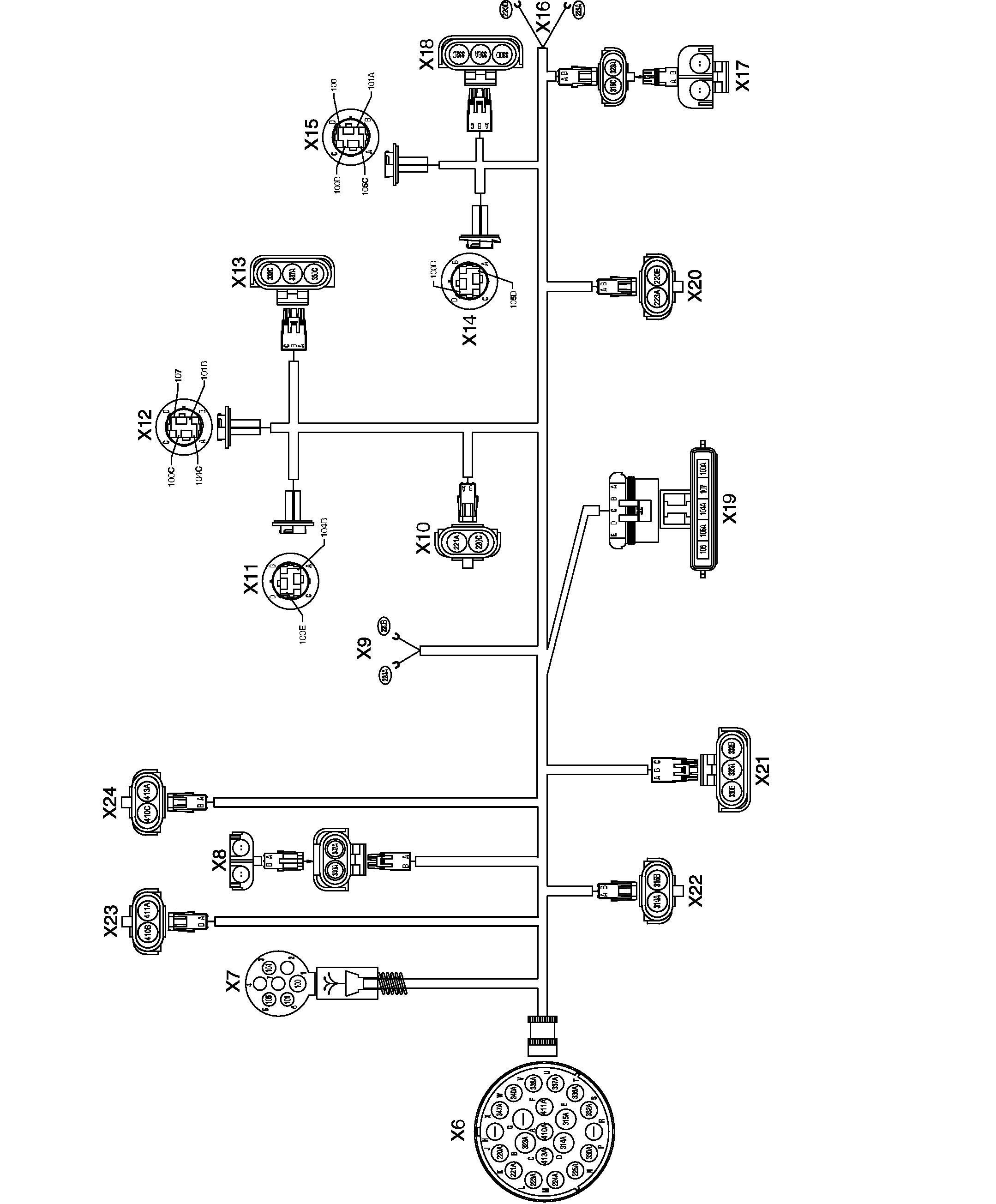

Wiring Harness Diagram

E70433
E70433-UN-11JUL13


Depending on options used with each baler, some connectors on harness can be absent or not used.

X6 To BaleTrak™ Pro Monitor-Controller Harness Connector

Terminal

Circuit

Function

Wire Color

A

410A

Speed Sensor Ground

Black

B

323A

Net Actuator

Orange

C

413A

Pickup Speed Sensor

Orange

D

314A

Twine Actuator

Yellow

E

315A

Twine/Net Actuator

Green

F

411A

PTO Speed Sensor

Brown

G



Open



H



Open



J

220A

Ground

Black

K

221A

Left Gate Latch Switch

Brown

L

223A

Right Gate Latch Switch

Orange

M

224A

Oversize Bale Switch

Yellow

N

225A

Net Switch

Green

P

330A

Ground

Black

R



Open



S

332A

Sensor

Red

T

336A

Bale Size Sensor

Blue

U

337A

Left Bale Shape Sensor

Purple

V

338A

Right Bale Shape Sensor

Gray

W

340A

Ground

Black

X

347A

Power

Purple

X7 To Tractor Seven-Terminal Outlet Connector

Terminal

Circuit

Function

Wire Color

1

100

Ground

Black

2



Open



3

104

Left-hand Turn/Warning Light

Yellow

4



Open



5

105

Right-hand Turn/Warning Light

Green

6

101

Tail Lights

Brown

7



Open



X8 Variable Core Connector

Terminal

Circuit

Function

Wire Color

A

347A

Power

Purple

B

340A

Ground

Black

X9 Oversize Bale Switch Leads

Terminal

Circuit

Function

Wire Color

224A

Power

Yellow

220B

Ground

Black

X10 Left-Hand Gate Latch Switch Connector

Terminal

Circuit

Function

Wire Color

220C

Ground

Black

221A

Power

Brown

X11 Left-Hand Turn/Warning Light Connector

Terminal

Circuit

Function

Wire Color

A

104B

Power

Yellow

B



Open



C



Open



D

100E

Ground

Black

X12 Left-Hand Tail Light Connector

Terminal

Circuit

Function

Wire Color

A

104C

Left-hand Turn/Warning Light

Yellow

B

101B

Left-hand Tail Lamp

Brown

C

100C

Ground

Black

D

107

Left-hand Flasher

Orange

X13 Left-Hand Bale Shape Connector

Terminal

Circuit

Function

Wire Color

A

330C

Sensor

Black

B

337A

Left Bale Shape Sensor

Purple

C

332C

Ground

Red

X14 Right-Hand Turn/Warning Light Connector

Terminal

Circuit

Function

Wire Color

A

105B

Power

Green

B



Open



C



Open



D

100D

Ground

Black

X15 Right-Hand Tail Light Connector

Terminal

Circuit

Function

Wire Color

A

105C

Right-hand Turn/Warning Light

Green

B

101A

Right-hand Tail Lamp

Brown

C

100B

Ground

Black

D

106

Right-hand Flasher

Violet

X16 Net Wrap Switch Leads

Terminal

Circuit

Function

Wire Color

220D

Ground

Black

225A

Power

Green

X17 Net Actuator Connector

Terminal

Circuit

Function

Wire Color

A

315C

Net Actuator

Green

B

323A

Net Actuator

Orange

X18 Right-Hand Bale Shape Connector

Terminal

Circuit

Function

Wire Color

A

330D

Ground

Black

B

338A

Right Bale Shape Sensor

Gray

C

332D

Sensor

Red

X19 Lighting Enhancement Module Connector

Terminal

Circuit

Function

Wire Color

A

100A

Ground

Black

B

107

Left-hand Flasher

Orange

C

104A

Left-hand Turn/Warning Light

Yellow

D

105A

Right-hand Turn/Warning Light

Green

E

106

Right-hand Flasher

Violet

X20 Right-Hand Gate Latch Switch Connector

Terminal

Circuit

Function

Wire Color

220E

Ground

Black

223A

Power

Orange

X21 Bale Diameter Connector

Terminal

Circuit

Function

Wire Color

A

330B

Ground

Black

B

336A

Bale Diameter Sensor

Blue

C

332B

Sensor

Red

X22 Twine Actuator Connector

Terminal

Circuit

Function

Wire Color

A

314A

Twine Actuator

Yellow

B

315B

Twine Actuator

Green

X23 PTO Speed Sensor

Terminal

Circuit

Function

Wire Color

A

411A

PTO Slip Clutch Alert Sensor

Brown

B

410B

Ground

Black

X24 Pickup Speed Sensor

Terminal

Circuit

Function

Wire Color

A

413A

Pickup Slip Clutch Alert Sensor

Orange

B

410C

Ground

Black
