Thread and Route Net Wrap Material

Use the recommended approved net wrap available from your John Deere dealer.

1.


   E40200-UN-08JUL96

   Avoid injury from entanglement in moving rolls. Disengage PTO, shut off the tractor engine, and disconnect monitor-controller power plug from the tractor convenience outlet before servicing.

   Edge-to-edge net wrap is available, but requires spacer plugs in end of roll and adjustments made to net wrap attachment. (See Adjust Net Wrap Stretch in Service—Net Wrap section.)


   E51064-UN-08JAN02

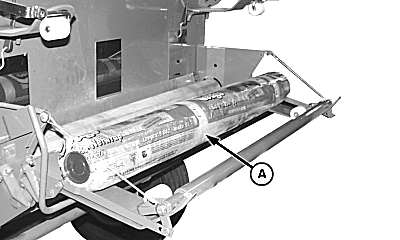

   A - Net Wrap Roll

   Open net wrap cover.

---




2. Remove all package material from the net wrap roll before installing.

   Swing lower tension arm out, place net wrap roll (A) at loading position.

3. Place free end of the net wrap from top of roll between the net frame cross-member and rubber roll.

4. Lift lower tension arm, placing roll of net in operating position.

5.
   E82219-UN-22FEB17

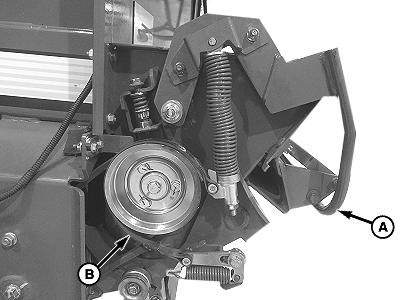

   A - Lever

   B - Brake Band

   Pull lever (A) out and back to disengage roller brake band (B).

---




6.
   E55136-UN-07MAY07

   Loop (E) Shown Larger for Illustration

   A - Net Wrap

   B - Net Wrap Roll

   C - Rubber Roll

   D - Steel Roll

   E - Distance, 1/2 to 1 inch Net Wrap Extension

   Net wrap must have one large stripe toward the right-hand side of machine. Thread net wrap (A), as illustrated, around the net wrap roll (B) and rubber roll (C).

---




7. Extend net wrap (A) no more than 1/2—1 in (E) between rubber roll (C) and steel roll (D).

   Maximum length is 1 inch. Any longer can cause net to stick to the rolls.

8. Do not thread more than 25 mm (1 in) of the loop between the two rolls or it can cause material to wrap around the rolls.

   Avoid knife contact with rubber roll. Any knife cuts in the rubber roll covering can result in more frequent wrapping around the rolls and can require roll replacement.

   If net wrap is not being pulled off front face of roll, net roll has been installed backwards. (See Step 1 for correct installation.)


   E84043-UN-11AUG17


   E84044-UN-11AUG17

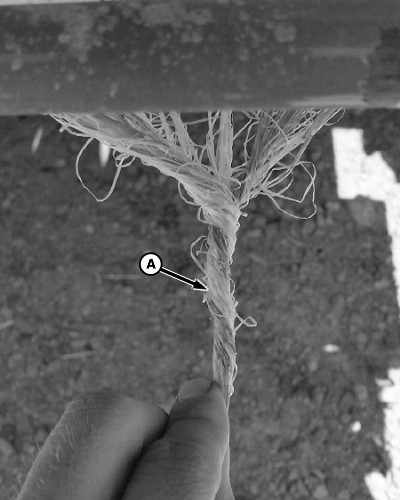

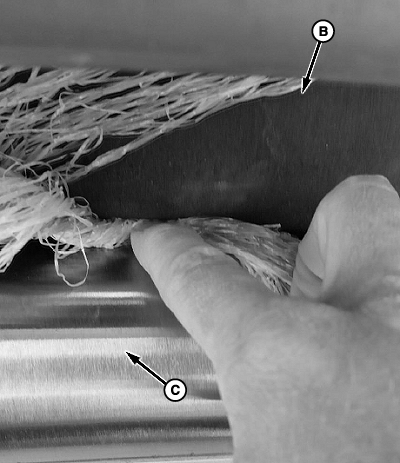

   A - Net Material

   B - Rubber Roll

   C - Steel Roll

   Gather and twist the net material (A) into a tight spiral and hold between the rubber roll (B) and the steel roll (C).

---




9.
   E84045-UN-11AUG17

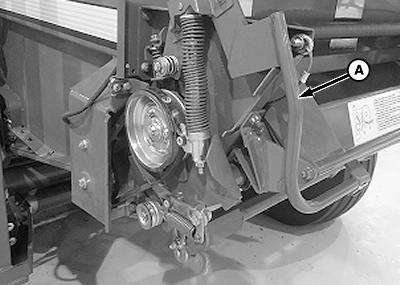

   A - Brake Lever

   While holding the spiral, relock the brake lever (A).

---




10. With a sharp knife cut off the excess material.

    Do not cut material on the roll.

11. Close the net wrap cover.

12. To avoid net wrapping on the rubber roll, release brake lever and reset brake before using the baler at the beginning of each day.

13. Adjust net wrap feed roll brake tension. (See Check and Adjust Net Wrap Feed Roll Brake in Service—Net wrap section.)
