Adjusting Bale Size Indicator

1.

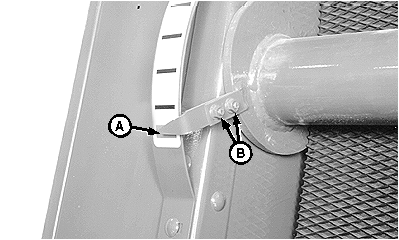

   E40191-UN-08JUL96

   A - Pointer

   B - Nuts

   Raise gate fully.

---




2. Shut off tractor and engage gate lock.

3. Loosen nuts (B) and line bottom edge of pointer (A) with bottom edge of red zone as viewed from tractor. Tighten nuts.

4. Disengage gate lock and lower gate.
