Remove and Install Knife

1.
   E52520-UN-26JUN03


   E79993-UN-24SEP15

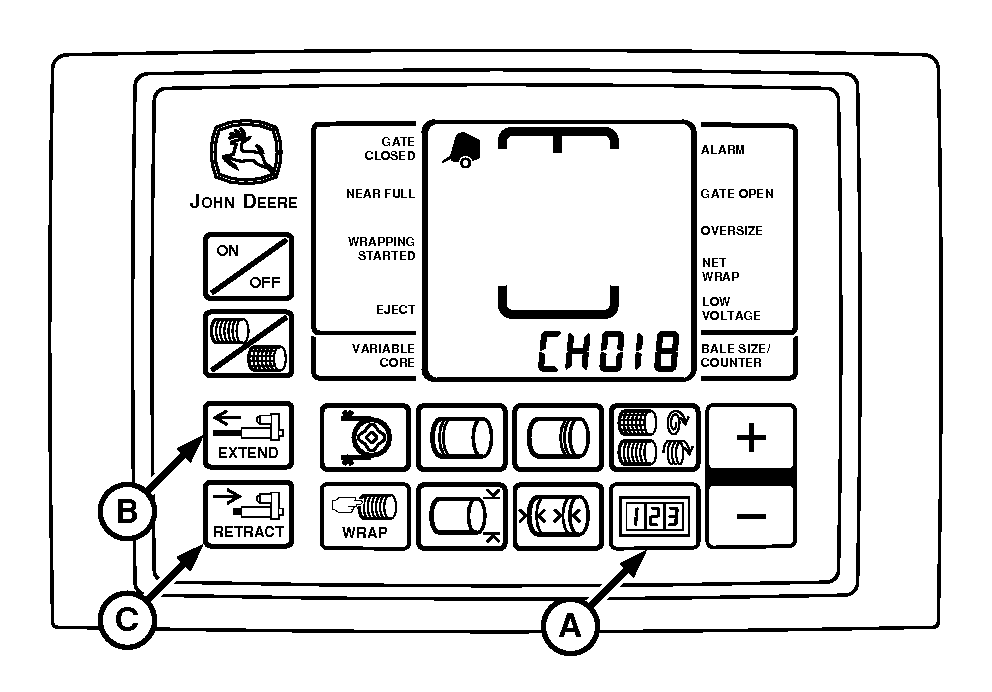

   A - COUNTER Key

   B - EXTEND Key

   C - RETRACT Key

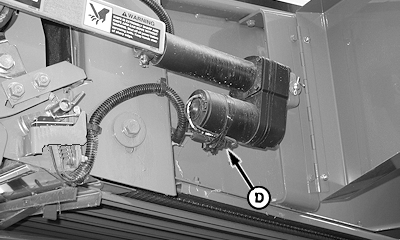

   D - Wire Harness Connector

   Turn tractor key to ON position. Turn monitor-controller ON.

---




2. Ensure that monitor is in NET mode. Turn monitor OFF.

3. Press and hold COUNTER key (A) while turning monitor-controller ON. CH001 will appear in the digital display.

4. Continue to hold COUNTER key and press PLUS key to advance to CH018. Release COUNTER key.

5. Press and hold EXTEND key (B) to move counterknife angle to the up position.

6. To avoid personal injury from unexpected knife movement, disconnect net wrap actuator wire connector or power plug when performing adjustment or working in area.

   Turn monitor-controller selector switch to OFF. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from power source or disconnect plug at net wrap actuator wire harness connector (D).

7.


   TS268-UN-23AUG88

   Cutoff knife is sharp. Wear gloves when handling cut-off knife.

   Roll removed for illustration only.


   E57769-UN-24JUL09

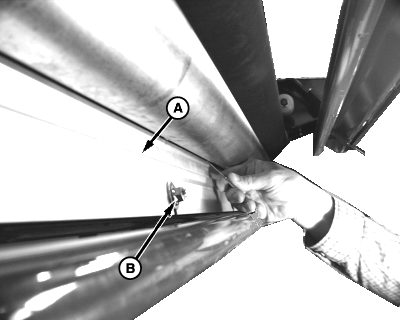

   A - Brush

   B - Nuts

   Remove brush (A) from knife by removing four nuts (B) and washers.

---




8.
   E55845-UN-26JUN08

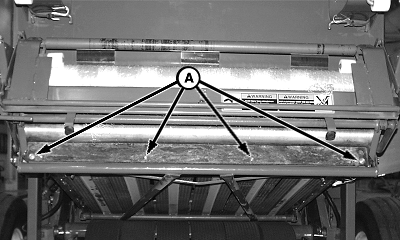

   A - Bolts, Washers, and Nuts

   Remove four round-head bolts, washers, and nuts (A) on each end of cut-off knife. Remove knife from knife bracket.

---




9. Repair or replace if necessary.

10. Install knife with beveled surface up and facing rear of machine.

11. Install round-head bolts, washers, and nuts (A) so the round heads facing front of machine. Tighten to specification.

    Knife-to-Knife Bracket	Torque	55 N·m (40 lb.-ft.)

12. Check proper knife-to-counterknife angle contact. (See ADJUST NET WRAP COUNTERKNIFE in this section.)

13. Install brush to knife by using four washers and nuts. Do not tighten at this time.

14. Install brush. (See INSTALL AND ADJUST NET WRAP BRUSH in this section.)

15. Connect net actuator wire connector.

16. Make sure to move net wrap counterknife fully downward to home position. If baler is operated with counterknife at the up position, net will feed continuously during baling.

    Turn tractor key to ON position.

17. Press WRAP key on monitor-controller to move counterknife fully downward to the home position.

18. Turn tractor key to OFF position. Remove key. Turn OFF monitor-controller.

19. Close net wrap cover.
