Remove and Install Net Wrap V-Belt

1. Lock gate.

2. Start tractor and raise tension arm fully using tractor hydraulics.

3. Turn tractor key to off position and remove key.

4. Disconnect monitor-controller power plug from tractor convenience outlet.

5. Open net wrap cover.

6. Put support under drive roll to help support weight of roll.

7.

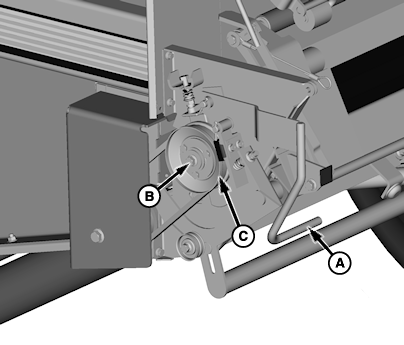

   E62347-UN-05APR12

   Left-Hand Side

   A - Brake Lever

   B - Cap Screw and Washer

   C - Sheave

   Raise brake lever (A) and place on tab.

---




8. Remove cap screw and washer (B) and sheave (C).

9.

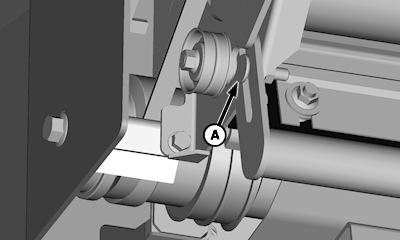

   E62348-UN-05APR12

   Left-Hand Side


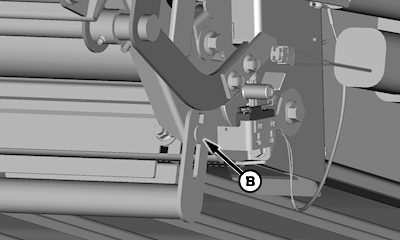

   E62349-UN-05APR12

   Right-Hand Side

   A - Bolts

   Lower net pan by removing bolts (A) on both sides of net wrap.

---




10.

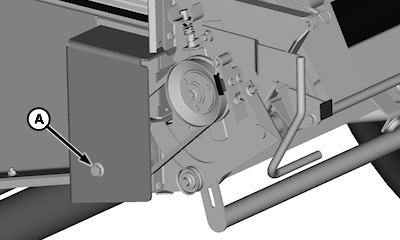

    E62354-UN-05APR12

    Left-Hand Side

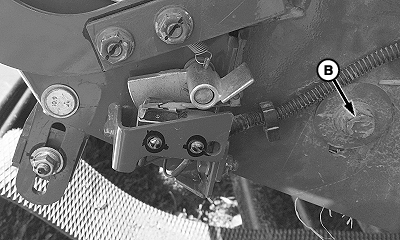

    E79994-UN-22SEP15

    Right-Hand Side

    A - Cap Screw

    B - Cap Screw

    Remove cap screw (A).

---




11. Loosen cap screw (B) until roll on left-hand side drops enough to remove v-belt.

12. Replace v-belt and install in reverse of removal using the following special instructions:

    • Check and adjust net wrap v-belt. (See CHECK AND ADJUST NET WRAP V-BELT IDLER TENSION in this section.)
    • Check net pan pressure. (See CHECK AND ADJUST NET PAN PRESSURE in this section.)
