Tire Installation and Wheel Nut Torque

  1. Install wheels with valve stems toward inside. Incorrect assembly can cause wheel nuts to loosen.

    Exceeding recommended tire pressure can damage baler frame.

    E79033
    E79033-UN-18MAY15

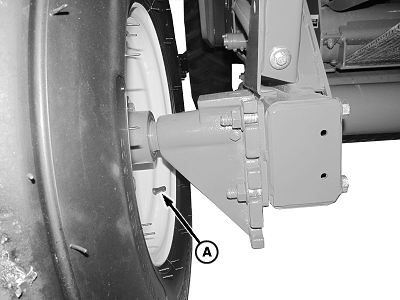

    A - Valve Stem

    Install wheel with valve stem (A) toward inside. Fasten with six 1/2 in. nuts.


  2. Whenever a wheel has been removed and installed, check torque after 1 hour of operation. Wheel nuts must be tightened to specifications using an alternating sequence.
    Wheel NutsTorque115 N·m (85 lb.-ft.)

  3. Verify tire inflation pressure.

    Tires

    kPa (bar) (psi)

    11L-14, 8 PR1

    207 (2.1) (30)

  4. Repeat procedure on opposite side.

1 For making bales at maximum weight and density, inflate 11L-14, 8 PR tires to 248 kPa (2.5 bar) (36 psi).
