Install Fire Extinguisher

A 9.5 L (2-1/2 gal) pressurized-water fire extinguisher can be mounted in the holes that are provided on the baler. (See your John Deere dealer.)

1. If bracket holes do not align with holes in baler, drill new holes in the bracket, NOT the baler.

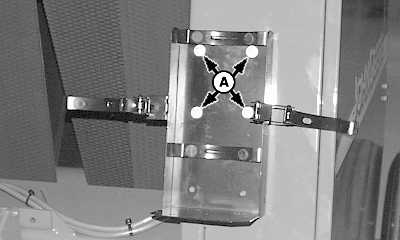

   E54037-UN-06JAN05

   A - Cap Screws, M8 x 25

   Install bracket on left-hand front panel. Fasten with four M8 x 25 cap screws (A), 9 x 28 x 3 mm washers, and nuts.

---




2.

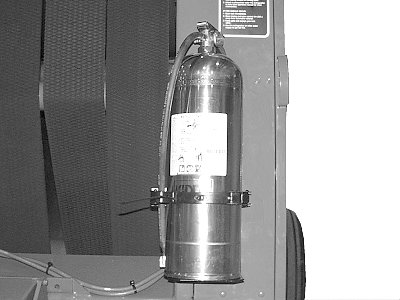

   E54036-UN-06JAN05

   Fill, pressurize and test fire extinguisher. If baler is subjected to cold weather, a nonflammable antifreeze solution should be used to prevent damage to extinguisher.

---




3. Fasten fire extinguisher to bracket.
