Adjusting Pickup Height

Operating with pickup teeth contacting the ground will cause pickup damage.

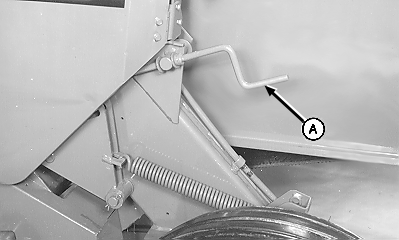

E39604-UN-20NOV95

Left-Hand Side

A - Pickup Turn Crank

Adjust pickup teeth height to obtain a ground clearance of 25—50 mm (1—2 in.) for an initial setting. The final adjustment will be determined by field conditions.

To adjust pickup height:

• Turn crank (A) clockwise to raise the pickup
• Turn crank (A) counterclockwise to lower the pickup

Always raise pickup to transport position when crossing ditches, moving from field to field, etc.
