Removing Compressor Rack Assembly

1.

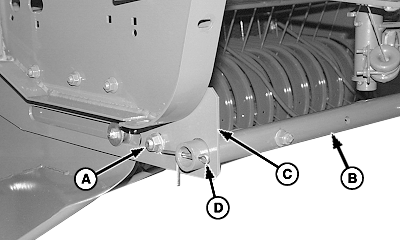

   E53999-UN-04JAN05

   A - Lock Nut

   B - Compressor Rack

   C - Right-Hand Bracket

   D - Cotter Pin

   Remove cap screw and lock nut (A). Remove cotter pin (D) from right-hand end of compressor rack tube.

---




2. Slide compressor rack (B) away from right-hand bracket (C).

3. Lower right-hand end and remove compressor rack from left-hand bracket.
