Installing Compressor Rack Assembly

1.

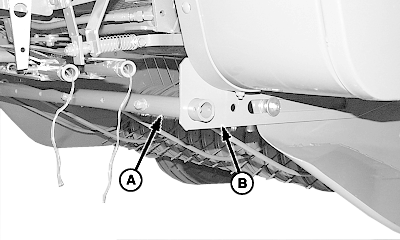

   E54000-UN-04JAN05

   A - Compressor Rack

   B - Left-Hand Bracket

   Install compressor rack (A) in left-hand bracket (B).

---




2.
   E53999-UN-04JAN05

   A - Cap Screw and Lock Nut

   B - Compressor Rack

   C - Bracket

   D - Cotter Pin

   Lift right-hand end and slide compressor rack (B) into bracket (C).

---




3. Install cap screw and lock nut (A). Install cotter pin (D) into right-hand end of compressor rack tube.

4. Make sure compressor rods do not interfere with twine arms. Adjust individual rods, as necessary, or adjust compressor rack assembly for clearance.

   Adjust to desired operating height. Tighten lock nut (A). (See ADJUSTING COMPRESSOR RACK ASSEMBLY in this section.)
