Practice Safe Service Procedures

TS698
TS698-UN-21SEP89

E40185
E40185-UN-25JUN96

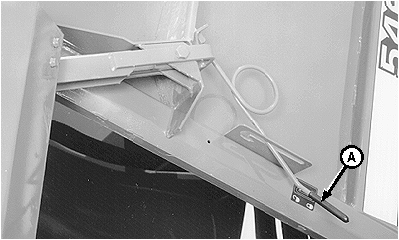

A - Gate Lock Lever

To help prevent personal injury caused by unexpected movement, be sure to service the machine on a level surface.

If machine is connected to a tractor, engage tractor parking brake and/or place transmission in "Park", shut off engine and remove key.

If machine is detached from tractor, block wheels to prevent movement.

While working inside or around the baler with an open gate, the gate lock lever (A) must be moved to locked position. Use this safety feature anytime the gate is open. Close the gate anytime the baler must be left unattended.

Before servicing or adjusting baler:

  1. Disengage all power.
  2. Shut off tractor engine.
  3. Wait until all moving parts have stopped.
  4. Let all components cool.

Disconnect power supply to electronic controls when servicing electrical systems or when welding on baler. Over-voltage can damage the electronic controls.
