Rotating Output Shaft By Hand

Never use any type of tool or wrench on shaft while tractor engine is running. Always remove tool from shaft as soon as you are finished using it.

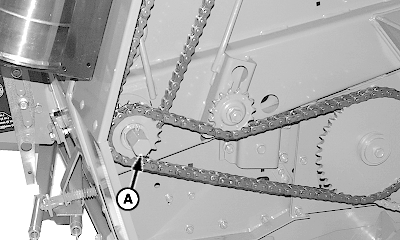

E54006
E54006-UN-05JAN05

A - Gear Case Output Shaft

An open-end wrench can be placed on the gear case output shaft (A) if it is necessary to rotate the shaft by hand.

OUO6077,0001956-19-20050105
