Adjusting Twine Indicator Retaining Strap

1. Perform adjustment on BOTH spinners.

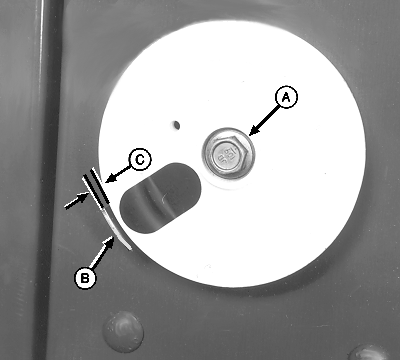

   E39735-UN-16FEB96

   A - Cap Screw

   B - Retaining Strap

   C - Distance

   Loosen cap screw (A).

---




2. Position retaining strap (B) in the eight o'clock position

3. Adjust dimension (C) between strap and twine indicator wheel according to specifications.

   Strap-to-Twine Indicator Wheel	Distance	0.4—0.8 mm (0.016—0.031 in.)

4. Tighten cap screw (A).

5. Twine indicator wheel must spin freely after adjustment.
