Raising Gate With Hoist

1.
   E54022-UN-05JAN05

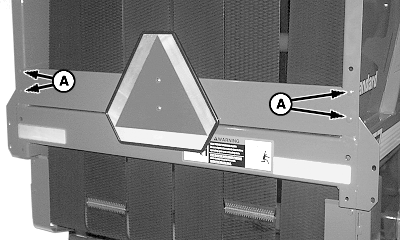

   A - Round-Head Bolts

   Remove four round head bolts (A) to remove top belt shield.

---




2. Wrap chain hoist around cross frame member and raise gate.

3. When finished, replace shield and SMV symbol.
