BaleTrak™ Pro Monitor-Controller Description

E52435
E52435-UN-16JUN03

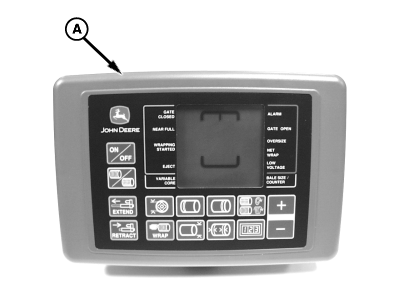

A - Monitor-Controller

The monitor-controller (A) uses switches, a liquid crystal display (LCD), and a microprocessor to monitor and control the baling and wrapping operations. The following conditions can be set (programmed) into the controller by the operator:

  • Bale Diameter
  • Twine Wrap:
    • Spacing
    • Number of End Wraps (Both Ends)
    • Twine End Wrap Distance (Both Ends)
    • Re-Extension Wrap Distance
    • Cinch Wrap
    • Delay of Twine Eject
    • Dry Straw


The conditions set by the operator will revert back to the initial settings when controller is reset (Channel 001).

The monitor-controller is mounted on the tractor and is powered by the tractor's 12-volt electrical system. When first turned on, the controller performs a self-test to ensure that the system is ready to operate. The controller, then sends a brief communication signal to the twine wrap actuator and waits for a reply before starting normal operations. If a reply signal is not received, the controller will not go into operating mode and the STOP indicator will light.

The monitor-controller uses sensors and switches to perform the following:

  • The sensors are used for monitoring:
    • Bale Diameter
  • The switches are used for monitoring:
    • Gate (Open/Closed)
    • Oversize Bale

To perform the wrapping process, the controller provides current to operate the bale wrap actuator. This is done automatically by the controller or manually by the operator pressing the WRAP key.
