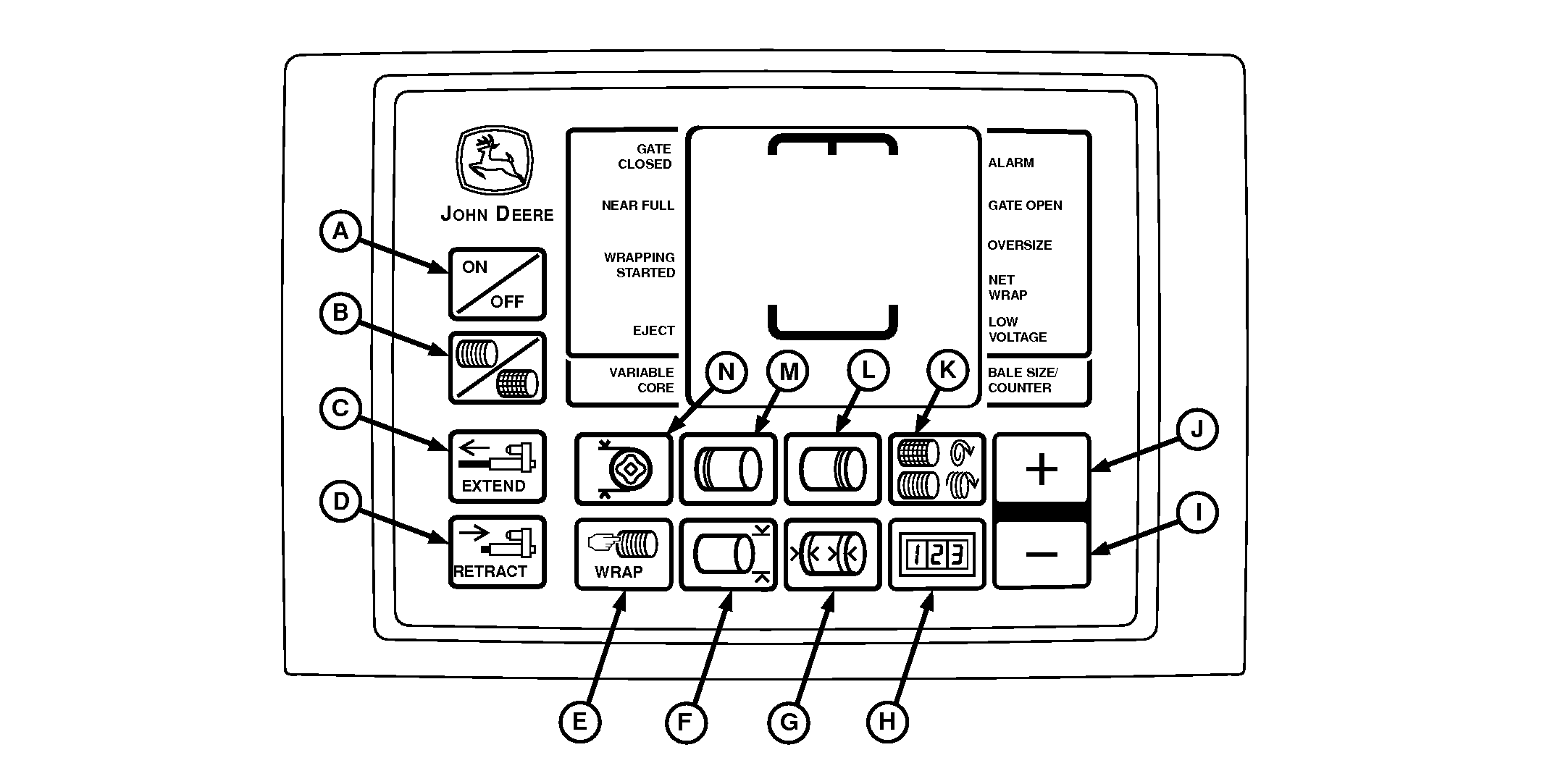

BaleTrak™ Pro Monitor-Controller Keys and Switches

E52458-UN-19JUN03

A - Monitor ON/OFF Switch

B - Selector Switch (Twine Only)

C - Actuator Extend—Manual (Twine Only)

D - Actuator Retract—Manual (Twine Only)

E - Wrap Cycle—Manual Start

F - Bale Diameter

G - End Wrap Distance (Twine Only)

H - Bale Counters

I - Minus Key

J - Plus Key

K - Twine Spacing

L - Number of Right-Hand End Wraps (Twine Only)

M - Number of Left-Hand End Wraps (Twine Only)

N - Not Used
