BaleTrak™ Pro Monitor-Controller Displays and Indicators

E55816-UN-09JUN08

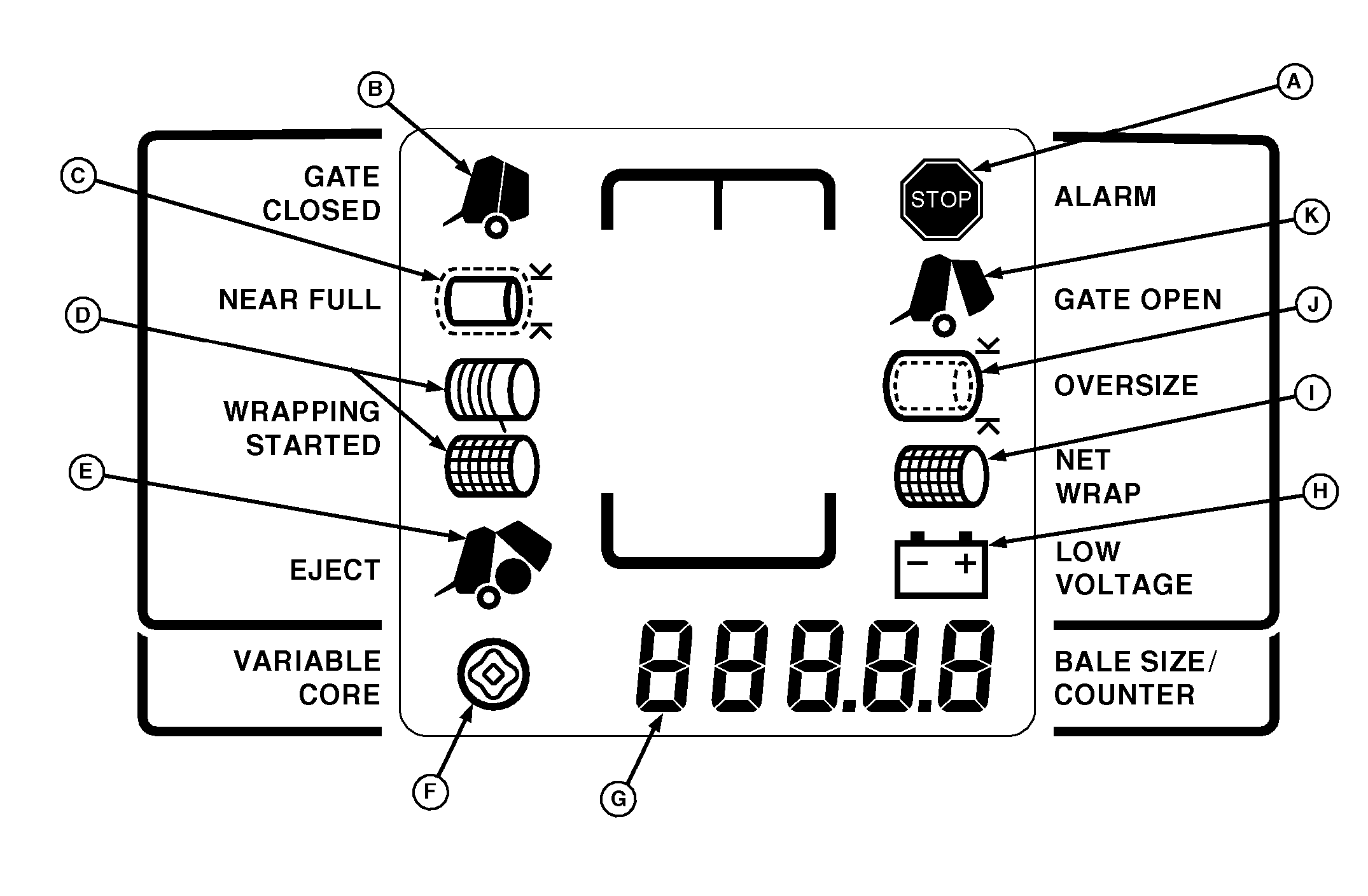

A - Stop Indicator (Flashing or Steady)

B - Gate Closed

C - Near Full

D - Wrapping Started

E - Eject

F - Not Used

G - Digital Display (Bale Size/Counter)

H - Low Voltage Alarm

I - Not Used

J - Oversize Alarm

K - Gate Open Alarm

L - Audible Alarm (Not Shown)

Indicators F and I are not used in this application.
