Activating BaleTrak™ Pro Monitor-Controller Alarms

Continuing to operate with a GATE OPEN or OVERSIZE alarm will result in baler damage.

E47506
E47506-UN-10JUN08

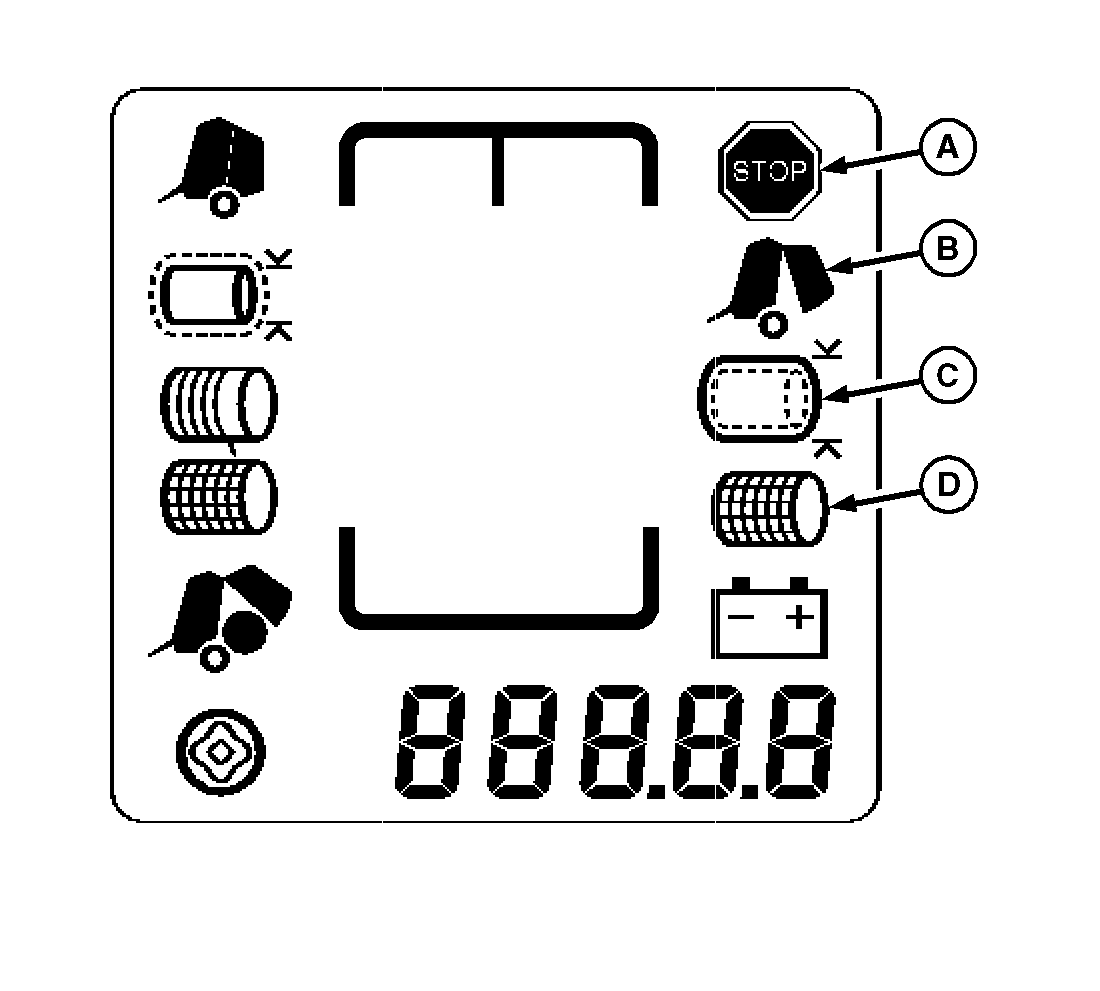

A - Stop Indicator

B - Gate Open Indicator

C - Oversize Bale Indicator

D - Not Used

Three conditions can activate the flashing STOP indicator (A) and alarm. Should the flashing STOP display and the alarm sound during normal operation, stop baling immediately. Take corrective action to silence alarm and cancel visual indicators.

The following conditions will activate the flashing STOP indicator (A) and alarm:

  • GATE OPEN (B): Gate is open. Continuing to operate may twist gate and result in machine damage.
  • OVERSIZE (C): Bale is above maximum allowable diameter. Continuing to operate with oversize bale in chamber can cause severe gate damage, roller breakage, and belt splice damage.

A flashing STOP indicator with no alarm can also appear at start-up if wiring to actuator is disconnected or damaged.
