Adjusting Oversize Bale Switch

1.


   TS698-UN-21SEP89

   Make sure gate is locked. If gate is not locked while performing this procedure, the gate could close suddenly causing injury or death.

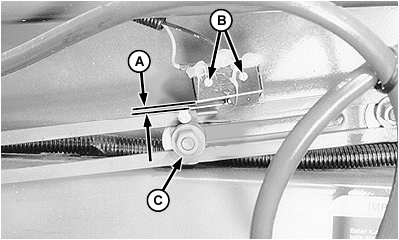

   E48969-UN-02OCT00

   A - Gap

   B - Screw

   C - Washers

   Raise gate until roller on bale size switch arm is centered over washers (C).

---




2. Loosen screws (B) and adjust switch to obtain a gap (A) between switch arm and body to specifications. Tighten screws (B).

   Arm-to-Body	Gap	3 mm (1/8 in.)

3. Turn tractor key to ON position. Do not start tractor engine.

4. Turn monitor-controller ON. Bale size alarm (in tractor) should be activated when switch is at this position. If not, repeat Step 2 and decrease gap (A) dimension.

5. Raise gate fully using tractor hydraulics (tension arm must be completely raised), then lock gate.

6.

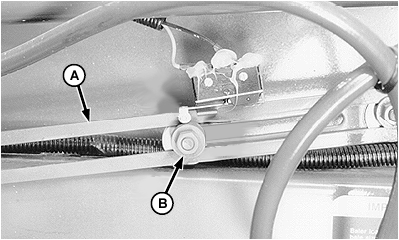

   E48970-UN-02OCT00

   A - Link

   B - Washers

   Manually push sliding link (A) forward until bale size switch roller is centered over washers (B).

---




7. Bale size alarm (in tractor) should activate when switch in at this position. If not, repeat Step 2 and decrease gap.

8. Lower gate completely.

9. Turn monitor-controller OFF. Turn tractor key to OFF position. Remove key.
