Adjusting Bale Size Link For Maximum Bale Size (Oversize Warning)

1. Adjust oversize bale switch. (See ADJUSTING OVERSIZE BALE SWITCH in this section.)

2. Close gate completely.

3.

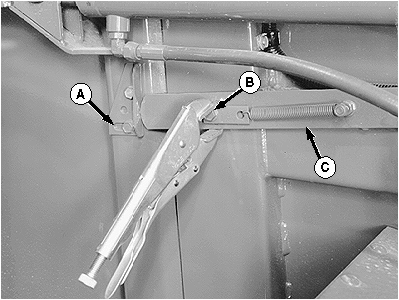

   E39289-UN-19JUN96

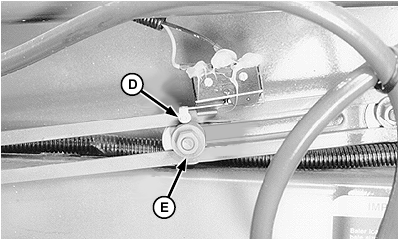

   E48971-UN-02OCT00

   A - Bracket

   B - Spring Strap Cap Screw

   C - Bale Size Link

   D - Switch Roller

   E - Washers

   Clamp bale size link (C) to the spring strap cap screw (B) using a pair of locking jaw pliers. (This is to keep the link from moving as the gate is opened.) Position the plier jaws over the spring strap cap screw (or washers) and under lower edge of link.

---




4. Raise gate fully using tractor hydraulics (tension arm must be completely raised), then lock gate.

5. Switch roller (D) must be centered on washers (E). If roller is not centered on washers, measure the distance between center of roller to center of rear washers.

6. Close gate and move bracket (A), forward or rearward, the amount previously measured.

7. Repeat Steps 2—6, as necessary, until roller is properly centered.
