Indicators For Baler Operation
Do not bale in red zone. Belts and drive loads increase as bale size approaches maximum diameter. Frequent forming of oversize bales can lead to premature failures.

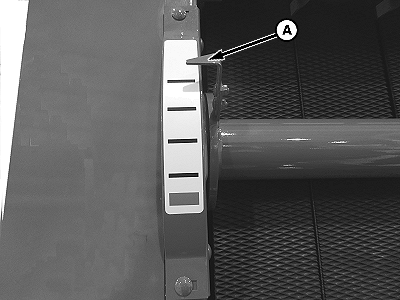

E79005-UN-11MAY15
A - Bale Size Indicator
Used as a guide to approximate bale size. Reading near top indicates small bale. Reading near bottom indicates large bale. The red zone indicates an oversize bale.

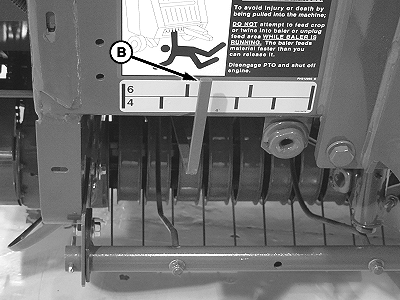

E79006-UN-11MAY15
A - Twine Arm Indicator
Indicates position of twine arms and is used as a guide for spacing twine on the bale.For Auto-Tie operations refer to Operating with BaleTrak™ Pro Systems section.
|
BaleTrak is a trademark of Deere & Company |
