Every 100 Hours
Gear Case
Do not over fill gear case as this will result in overheating and oil leakage.

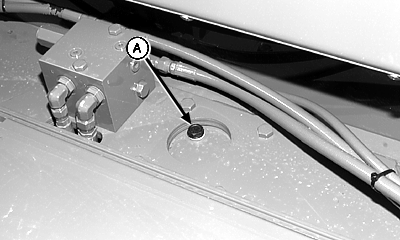

E41815-UN-17DEC96
A - Dipstick
Check level of lubricant with dipstick (A). Lubricant must fall between grooves on the dipstick.Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.
| Gear Case | Capacity | 1.2 L (1.25 U.S. qt) |
|
