Install Jack

1.

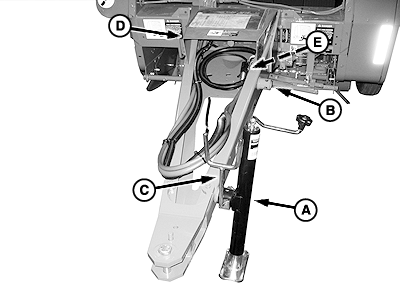

   E57064-UN-24APR09

   A - Jack

   B - Storage Location

   C - PTO Support and Quick-Lock Pin

   D - PTO Shield

   E - Tie Strap

   Park baler on level surface.

---




2. Block both wheels at front and rear to prevent baler rolling.

3. Raise tongue with appropriate lifting device and remove jack (A) from storage location (B). Place in vertical position and secure with PTO support and quick-lock pin (C).

4. Remove shipping wire from PTO shield (D).

5. Raise PTO shield and remove tie strap (E) from hoses and wiring harness.
