Setting Twine Re-Extension (Advanced Operational Information) (Channel 003)

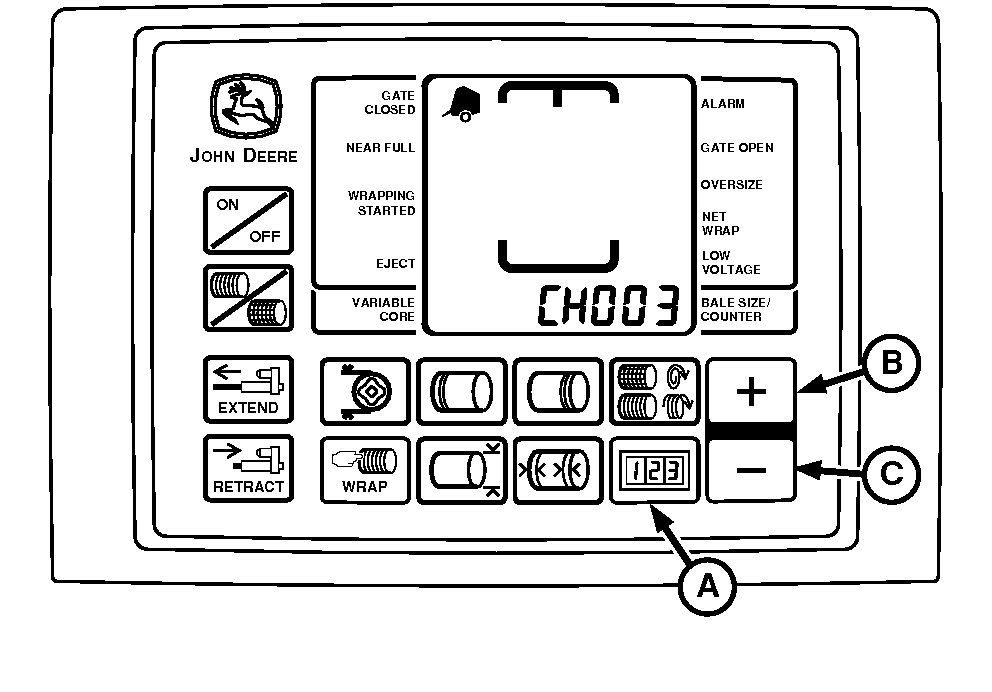

E52452
E52452-UN-18JUN03

A - COUNTER Key

B - PLUS Key

C - MINUS Key

Re-Extension is a feature that may help prevent twine unrolling. It places a wrap of twine back toward the middle of the bale from the left-hand end wrap location by the distance indicated by the setting. This is done after the set number of end wraps have been applied.

Setting

Feature

OFF

OFF

8

Approximately 20 cm (8 in.) of re-extension

16

Approximately 40 cm (16 in.) of re-extension

24

Approximately 60 cm (24 in.) of re-extension

To access special wrap program:

  1. Turn tractor key to ON position. Do not start tractor engine.

  2. Press and hold COUNTER key (A). Turn monitor-controller ON.

  3. Continue to hold COUNTER key (A) and press PLUS key (B) until CH003 appears in digital display.

  4. Release COUNTER key (A) and view current setting (see chart).

    • Press PLUS key (B) to increase setting.
    • Press MINUS key to reduce setting.

  5. Turn monitor-controller OFF to enter setting into memory.

  6. Turn tractor key to OFF position. Remove key.
