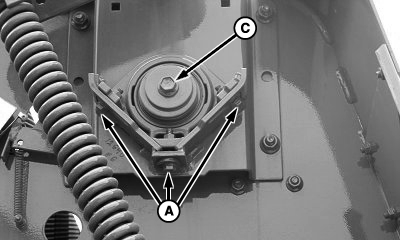

Install Left-Hand Upper Drive Roll Bearing

E57624-UN-10JUL09

Right-hand Upper Drive Roll Bearing

E58907-UN-10AUG10

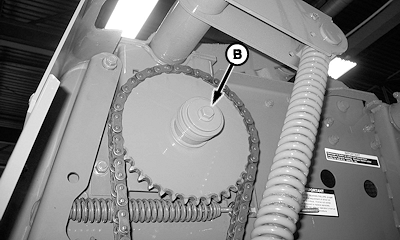

Left-hand Upper Drive Roll Bearing

A - Cap Screw, M8 (3 used)

B - Cap Screw, M12 (Drive Side)

C - Cap Screw, M12 x 80

Right-hand Side: Loosen three flange mounting cap screws (A) and cap screw (C).

E54919-UN-30NOV06

A - Stamp (UP)

Clean washers and replace if necessary.

1.
   E56404-UN-06JAN09

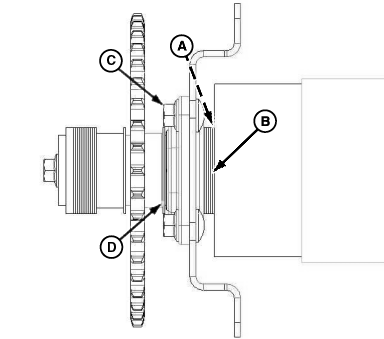

   A - Chamfered Spacer

   B - Washers

   C - Flanged Nut

   D - Washers

   Install chamfered spacer (A) (chamfer toward roll), washers (B), and bearing (with “UP” stamp toward top of baler) on shaft, snug four flange nuts (C), and pull roll firmly to left-hand side of baler.

---




2. Center roll side-to-side:

   • Center roll side-to-side.
   • Measure from outer rubber strip to side sheet on both sided to check roll centering.
   • The difference between the two dimensions must be 6 mm (0.24 in.) or less.
   • If needed, add or remove washers between roll and left-hand bearing to center roll.



3. Tighten flange nuts (C) to specifications.

   Flange Nut and Bolt	Torque	95 N·m (70 lb.-ft.)

4. Install sprocket with larger hub pointing toward roll.

   Install sprocket and washers (D).

5.
   E58908-UN-10AUG10

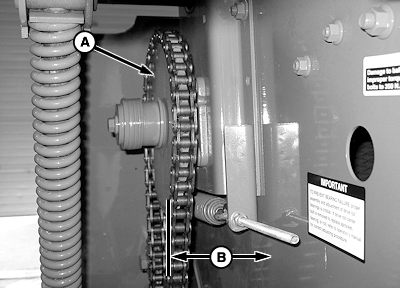

   A - Outer Surface of Sprocket

   B - Clearance, 90.5 mm (3.6 in.)

   Measure clearance (B) between sidesheet and outer surface of sprocket (A). Clearance must be within specification.

   Sidesheet-to-Outer Surface of Sprocket	Clearance	90.5 mm (3.6 in.)

---




6. If not within specification, add or remove washers between sprocket and bearing as necessary.

7. Install one thin washer and spacer.

8.
   E57625-UN-13JUL09


   E58909-UN-10AUG10

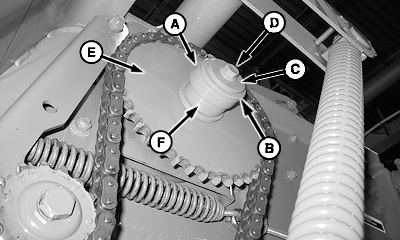

   Drive Sprocket

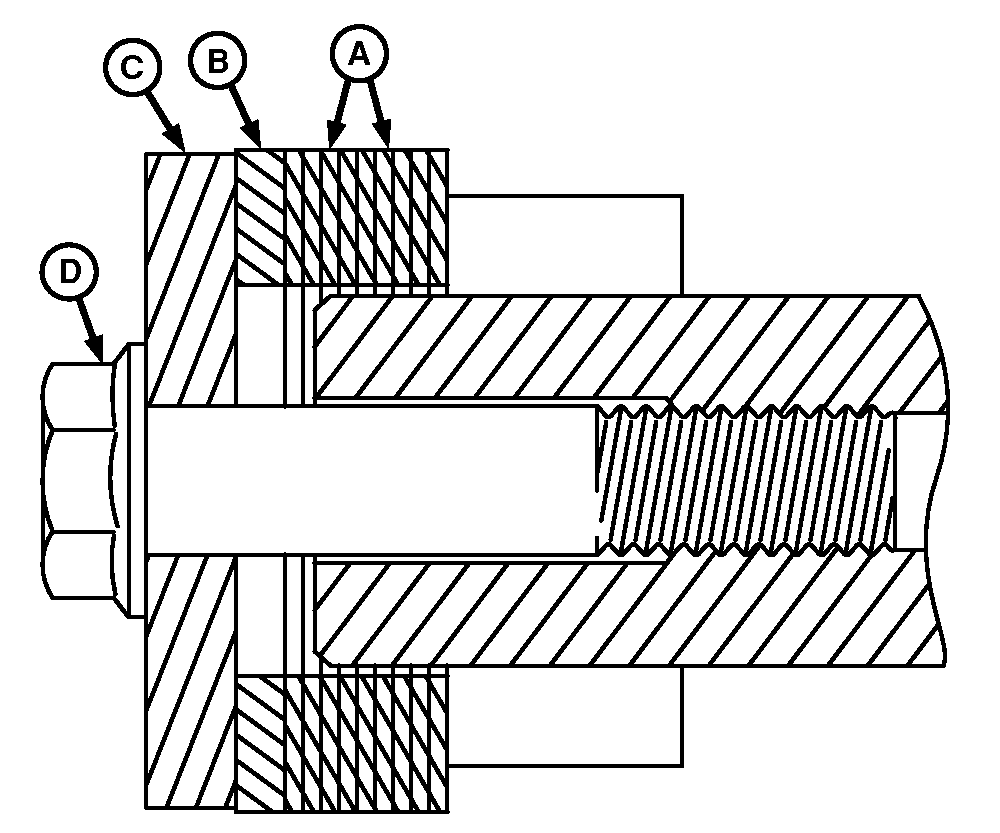

   A - Thin Washers (As Required)

   B - Thick, Large Washer

   C - Heavy Washer 13 x 57 x 6 mm (0.5 x 2.25 x 0.24 in.)

   D - Cap Screw, M12 x 75

   E - Upper Drive Roll Sprocket

   F - Spacer

   Tap right-hand side of upper roll to remove all endplay to left-hand side of baler.

---




9. Hold upper roll shaft to left-hand side and push upper drive roll sprocket (E) and washers inward.

10. Install one thin washer and spacer (F).

11. To avoid center bolt loosening or hex knock, keep washers (A) centered on shaft. Ensure that washers do not rotate by hand. Joint must be clamped to eliminate hex knock.

    Install washers (A) between spacer and end of shaft, so washers are flush with end of shaft, and add one washer (A). Add a thick, large ID washer (B). Install 13 x 57 x 6 mm (0.5 x 2.25 x 0.24 in.) washer (C).

12. Install M12 x 75 cap screw (D).

13. Tighten cap screw (D) to specification.

    Cap Screw	Torque	140 N·m (103 lb.-ft.)

14.
    E56405-UN-06JAN09

    A - Spacer

    B - Thin Washer

    C - Bearing

    D - Mounting Strap

    E - Cast Housing

    F - Cap Screw, M8 (3 used)

    Right-hand Side: Make sure that there are enough washers (B) between end of roll tube and bearing to locate bearing cast housing correctly. Remove three M8 cap screws (F) to be installed later.

---




15. Hold bearing (C) tight against washers. Edge of mounting strap (D) must align within the step of cast housing (E) in three locations.

16.
    E54509-UN-15MAY06

    A - Cast Step

    B - Mounting Strap Edge

    C - Dimension, 1.5—4.5 mm (0.059—0.177 in.)

    Add or subtract washers behind bearing, if necessary, to locate cast step (A) correctly with mounting edge (B) in all three locations. Set mounting edge to specification.

    Cast Step	Distance	1.5—4.5 mm (0.059—0.177 in.)

---




17.
    E57567-UN-09JUL09


    E57565-UN-09JUL09


    E57568-UN-09JUL09

    A - Flanged Cap Screws (3 used)

    B - Flanged Nut (3 used)

    C - Washers

    D - Large (Thick Washer)

    E - Cap Screw, M12 x 80

    F - Shims

    G - Washer, 13 x 70 x 12 mm (0.50 x 2.75 x 0.47 in.)

    Install three flange mounting cap screws (A) and nuts (B). Only tighten cap screws enough to get a light between cast flange and mounting strap. Some rotation (a light tap) of the cast flange around the outer race can be required to align flange correctly at all three locations. Do not tighten cap screws at this time.

---




18. Rolls must rotate freely. Check roll clearance through hole in sidesheet.

    If roll is equipped with wiper pins, it is permissible to grind drive roll wiper pins to 3 mm (0.12 in.) minimum height.

    Spin upper drive roll to verify clearance with sidesheet hole according to specifications. Add or remove shims (F) or move right-hand bearing plate, or grind drive roll wiper pins, if equipped.

    Rollers-to-Sidesheet	Clearance	1 mm (0.04 in.)

19. To avoid center cap screw from loosening or hex knock, keep washers (C) centered on shaft.

    Install washers (C) between bearing and end of hex shaft, so washers are flush with end of shaft, and add one more washer. Add large thick ID washer (D).

20. Install M12 x 80 cap screw (E) and 13 x 70 x 12 mm (0.50 x 2.75 x 0.47 in.) end washer (G).

21. To prevent bearing failure, always tighten M12 cap screw (C) before tightening flange mounting M8 cap screws (A) and (B).

    Ensure that washers do not rotate by hand. Joint must be clamped to eliminate hex knock.


    E57566-UN-09JUL09

    A - Cap Screw, M8 (2 used)

    B - Cap Screw, M8

    C - Cap Screw, M12 x 80

    Tighten M12 x 80 cap screw (C) to specification.

    M12 Cap Screw	Torque	140 N·m (103 lb.-ft.)

---




22. Tighten middle flange mounting cap screw (B) first. Tighten remaining two flange mounting cap screws (A). Tighten all three cap screws to specification.

    Cap Screw	Torque	40 N·m (30 lb.-ft.)

23. Check position of mounting edge to cast step in three locations. If mounting edge does not align in the cast sets, repeat Steps 14—22.
