Adjusting Belt Tracking

1. Check belt tracking before making any belt tracking adjustments.

   If belts are new and have not been used, add baby powder to simulate crop dust and allow belts to track freely.

   Check belt tracking with PTO engaged and tractor at lowest rpm. Hold tractor hydraulic lever in gate closing position to apply tension to belts while checking.

   If adjustment is needed, raise tension arm fully before adjusting rolls.

   Light contact with belt guides is acceptable, but belts should not curl against guide straps.

2. Loosen cap screw (A) and adjust number 8 roll in slot with small movements. Let baler run at least 30—40 seconds to observe tracking between adjustments.

3.

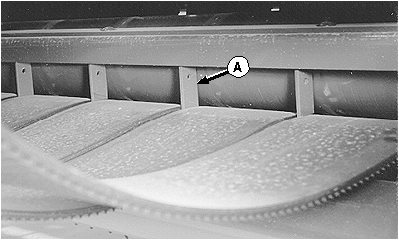

   E40115-UN-21JUN96

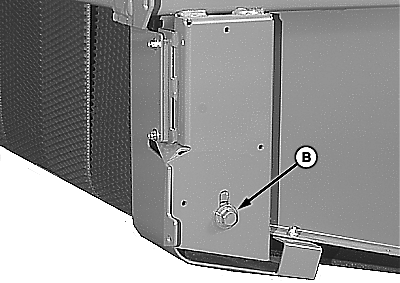

   E48783-UN-10AUG00

   A - Lower Belt Guide

   B - Cap Screw

   If belts are not centered at lower belt guide (A), make the following adjustments:
   • If belts track to the left:



   1. Loosen cap screw (B) at right side.

   2. Raise RIGHT end of lower rear gate roll.

   3. Tighten cap screw (B).

   • If belts track to the right:



   1. Loosen cap screw (B) at right side.

   2. Lower RIGHT end of lower rear gate roll.

   3. Tighten cap screw (B).

      Light contact with belt guides is acceptable, but belts should not curl against guide straps.

---




4. Tighten cap screw (B) to 140 N•m (105 lb.-ft.).

5.

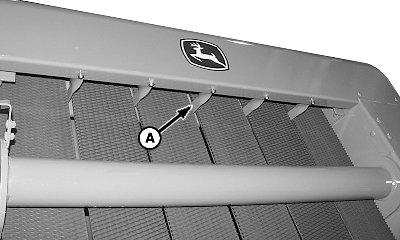

   E54023-UN-05JAN05

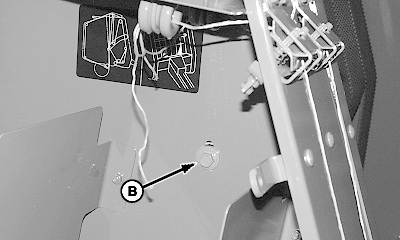

   E54024-UN-05JAN05

   Right-Hand Side

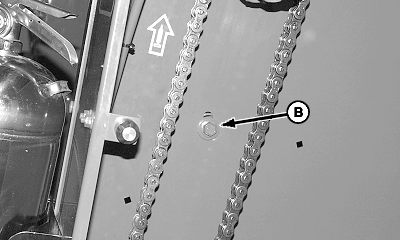

   E54025-UN-05JAN05

   Left-Hand Side

   A - Front Belt Guide

   B - Cap Screw

   If belts are not centered at the upper front belt guide (A), make the following adjustments:
   • If belts track to the right:



   1. Open twine box door.

   2. Loosen cap screw (B) at right-hand side.

   3. Raise RIGHT end of front idler roll.

   4. Tighten cap screw (B).

   OR

   1. Open left-hand door.

   2. Loosen cap screw at left-hand side.

   3. Lower LEFT end of front idler roll.

   4. Tighten cap screw.

   • If belts track to the left:



   1. Loosen cap screw (B) at left-hand side.

   2. Raise LEFT end of front idler roll.

   3. Tighten cap screw.

   OR

   1. Loosen cap screw at right-hand side.

   2. Lower RIGHT end of front idler roll.

   3. Tighten cap screw (B).

---




6. Tighten cap screw (B) to 140 N•m (105 lb-ft).

7.

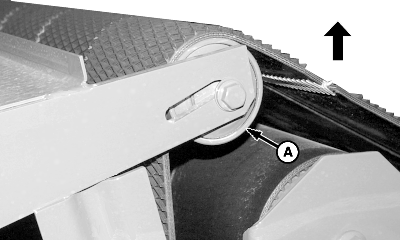

   E57873-UN-18AUG09

   A - Take-Up Roll

   If belts are not centered at the upper rear guide, make the following adjustment:
   • If belts track to the right, move RIGHT end of take-up roll (A) (in direction shown) in short leg of “L” shaped slot.
   • If belts track to the left, move LEFT end of take-up roll (A) (in direction shown) in short leg of “L” shaped slot.
   • Tighten cap screw to specification.

     Cap Screw	Torque	140 N•m (105 lb.-ft.)




---




8.

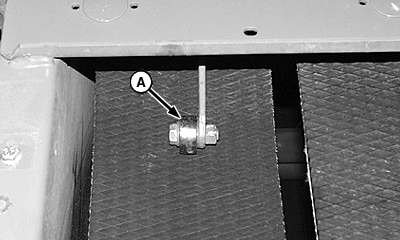

   E47618-UN-07JAN00

   Left-Hand Side Shown

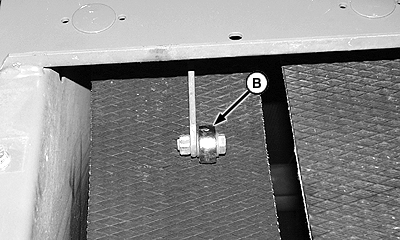

   E47619-UN-07JAN00

   A - Roller (Normal Outside Position)

   B - Roller (Inside Position)

   If outside belts track to the outside, rubbing the lower belt guide or side of baler, adjust as follows:
   • Move roller from the normal outside position (A) on the sender arm to inside position (B). The belt will track towards the middle of the baler.



---
