Annually

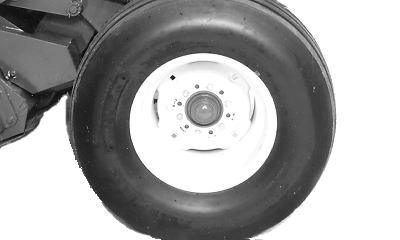

Baler Wheel Bearings

E39740-UN-16FEB96

Remove the wheels; then clean, repack, and adjust bearings. Use John Deere EP Moly or an equivalent SAE multipurpose type grease, or wheel bearing grease.

Gear Case

E57911-UN-25AUG09

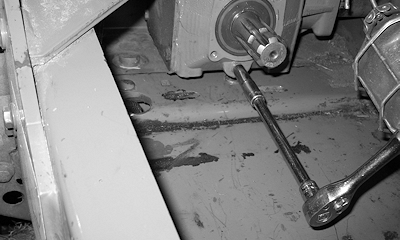

Removing Drain Plug

Drain and refill gear case annually.

Driveline removed for illustration purposes.

Do not over fill gear case as this will result in overheating and oil leakage.

Check level of lubricant with dipstick. Lubricant must fall between grooves on dipstick.

Refill as necessary using SAE 85-140 API GL-5 gear lubricant. Drain and refill gear case once each season.

Gear Case	Capacity	1.2 L (1.25 U.S. qt)
