Adjusting Lower Roll Drive Chain

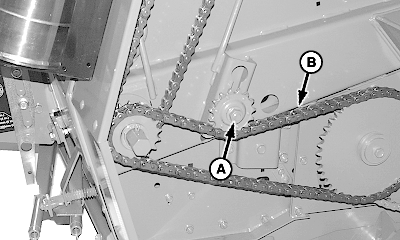

E54007-UN-05JAN05

A - Idler Gear Nut

B - Chain

To ensure that all slack is removed from chains;
• Close gate and engage PTO a few seconds.
• Stop tractor engine and remove key.

1. Open left-hand side door.

2. Loosen idler gear nut (A).

3. Push idler DOWN against chain (B) to specifications.

   Idler-to-Chain	Force	22—44 N (5—10 lb force)

4. Tighten idler nut (A) to specifications.

   Idler Nut	Torque	163 N˙m (120 lb.-ft.)

5. Close left-hand side door.
