Replacing Main Drive Shear Bolt

1.

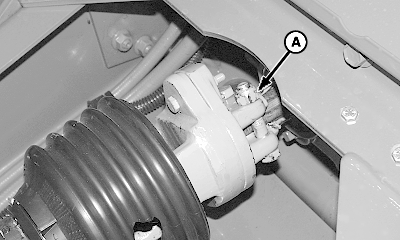

   E54011-UN-05JAN05

   A - Lock Nut

   Raise cover.

---




2. Install a 5/16 x 2 in., Grade 5, cap screw and lock nut (A).

3. Ensure shear bolt is tightened to specifications.

   Tighten cap screw and lock nut to specifications.

   Main Drive Shear Bolt	Torque	19.5 N•m (14 lb.-ft.)
