Check For Looped Net Material

Net material looped above counterknife angle after cut off can get pinched between front sheet and rubber roll when counterknife angle is raised.

Looping net material is caused from brake not quickly stopping roll of net material.

1.

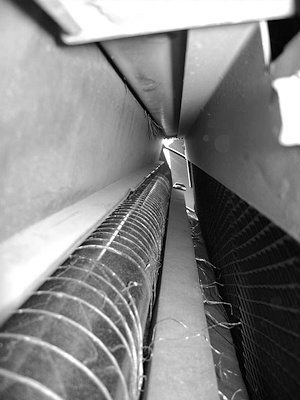

   E58032-UN-25SEP09

   Net Material Against Steel Roll

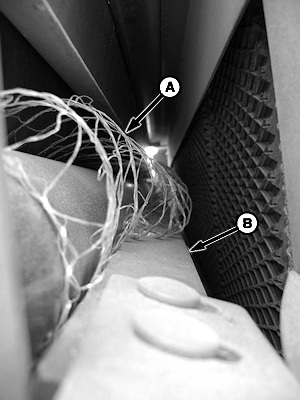

   E58031-UN-25SEP09

   Looped Net Material Above Counterknife Angle

   A - Net Material

   B - Counterknife Angle

   Make a bale and wrap.

---




2. Shut off tractor engine and remove key.

3. Open net wrap cover.

4. Perform visual check from right-hand side of baler.

   • If net material is against steel roll as shown, surface wrap must be performing acceptably.
   • If net material (A) is looped over counterknife angle (B), brake torque can be too low. (See CHECK AND ADJUST NET WRAP FEED ROLL BRAKE in this section.
