Check and Straighten Net Pan Angle

E55331
E55331-UN-09JUL07

E55332
E55332-UN-09JUL07

E55333
E55333-UN-09JUL07

A - Straight Edge

B - Net Pan Angle

C - Blocks

D - Dead Blow Hammer

  1. Place net pan on solid, level surface.

  2. Remove leaf spring by removing two cotter pins (one on each end of leaf spring).

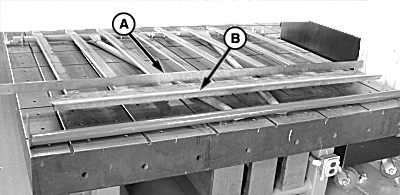

  3. Place a straight edge (A) on net pan angle (B) top (shown) or channel beneath net pan angle.

  4. Net pan angle can be bowed up to 2.5 mm (0.10 in.).

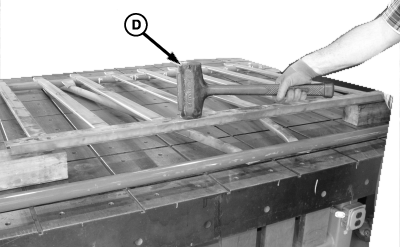

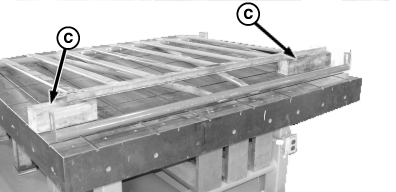

  5. If bow is high in the middle, place blocks (C) under each end and push down, or use a dead blow hammer (D) in middle of net pan angle to straighten.

  6. Adjust net pan pressure. (See CHECK AND ADJUST NET PAN PRESSURE WITHOUT LEAF SPRING in this section.)

PP98408,0000FA3-19-20130207
