Adjust Net Wrap Feed Roll Pressure

1.

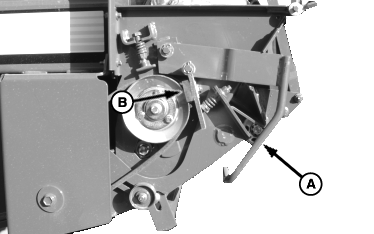

   E54537-UN-01MAY06

   A - Brake Lever

   B - Brake Pad

   Open net wrap cover.

---




2. Pull lever (A) out and up to disengage roller brake pad (B).

3. Remove any foreign material or net wrap from between the rolls.

4. Too much pressure can cause net wrap to wrap on rubber roll. A lack of pressure will prevent net wrap from being fed by the rolls to the bale or can cause poor placement of net wrap material on the bale.

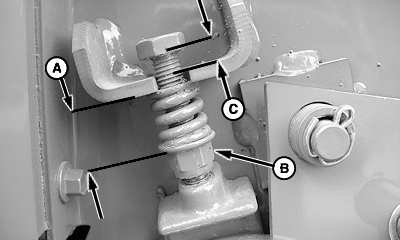

   E57645-UN-14JUL09

   Left-hand Side Shown

   A - Distance, Over Coils

   B - Adjusting Nut

   C - Distance, Bolt Head to Bracket

   Adjust spring length by loosening or tightening spring adjusting nut (B) until dimensions (A) and (C) are within specifications.

   Feed Roll Spring	Distance Over Coils	20.5 mm (0.807 in.)

   Bolt Head to Bracket	Distance	1—12 mm (0.039—0.197 in.)

---




5. Engage brake by pulling out lever and positioning lever under tab.

6. Repeat on opposite side.
