Adjust Baler Hitch

1.
   E62317-UN-04APR12

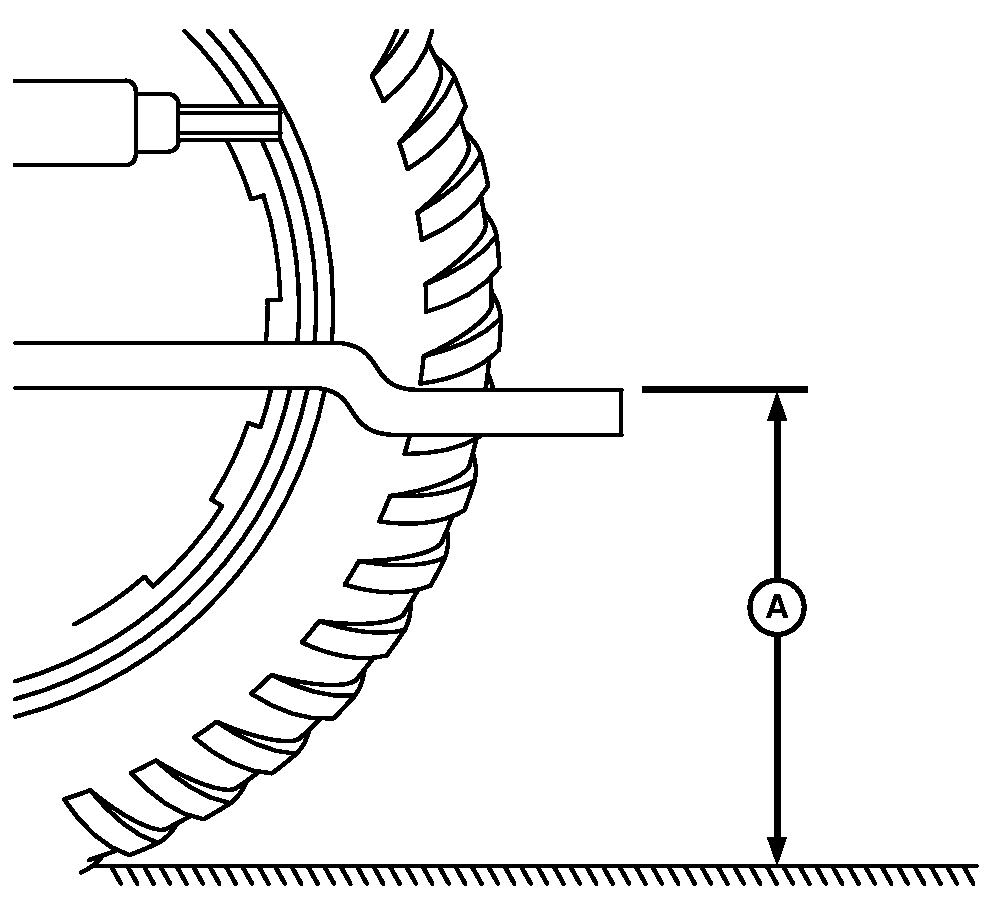

   A - Dimension

   Measure from the top of the tractor drawbar to the ground. Measure on level ground.

---




2. All baler hitches are factory installed in position 3.


   E60309-UN-13JUL11

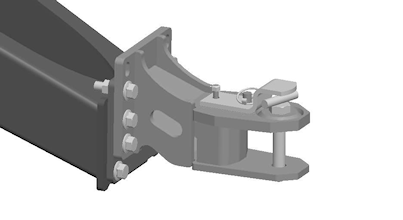

   Position 1


   E60310-UN-13JUL11

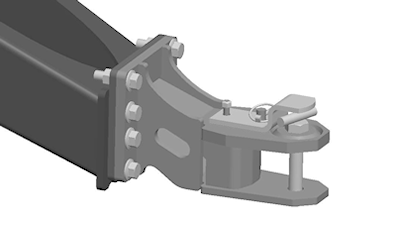

   Position 2


   E60311-UN-13JUL11

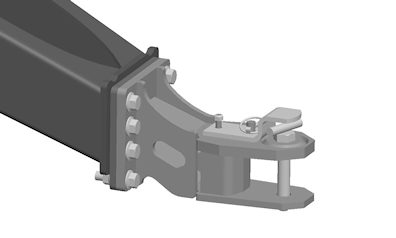

   Position 3 (Factory Setting)


   E60312-UN-13JUL11

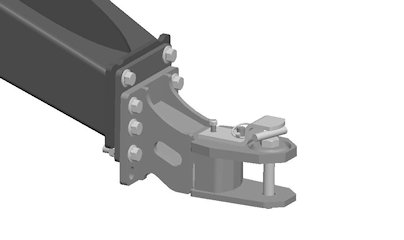

   Position 4

   Adjust baler hitch according to the drawbar dimension.

   Regular Pickup	Drawbar Dimension (A)
   Position 1	432—559 mm (17—22 in)
   Position 2	330—432 mm (13—17 in)
   Position 3	Not Recommended
   Position 4	Not Recommended

---




3.
   E62321-UN-04APR12

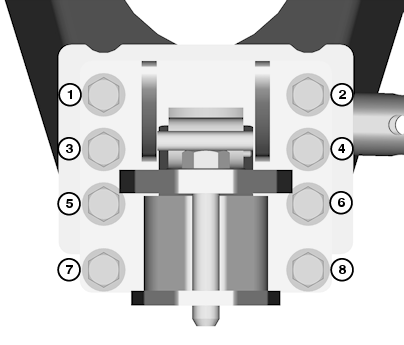

   Tighten hardware using sequence 1—8 as shown.

---




4. Tighten hardware to specification.

   Adjustable Hitch Hardware	Torque	350 N·m (258 lb·ft)
