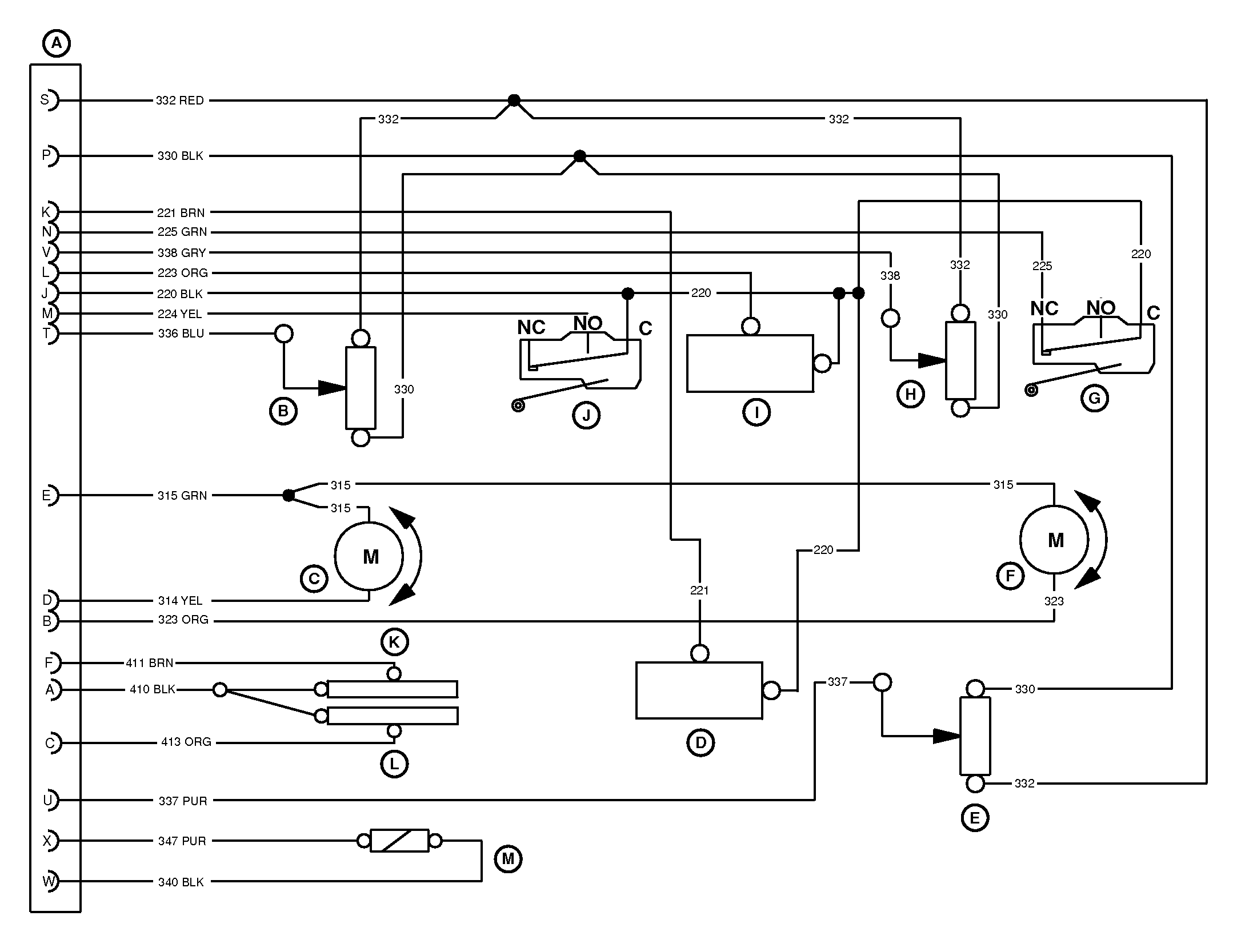

Wiring Diagram—BaleTrak™ Pro Monitor-Controller Control System

E82435-UN-17APR17

A - Bale Connector

B - Bale Diameter Sensor

C - Twine Actuator (if equipped)

D - Left Gate Latch Switch (not used)

E - Left Bale Shape Sensor (not used)

F - Net Actuator (if equipped)

G - Net Wrap Switch (if equipped)

H - Right Bale Shape Sensor (not used)

I - Right Gate Latch Switch

J - Oversize Bale Switch

K - PTO Slip Clutch Alert Sensor (not used)

L - Pickup Slip Clutch Alert Sensor (not used)

M - Variable Core Solenoid

Depending which baler, twine, or net wrap, some connectors on harness are not used.
