Check Front Sheet-to-Rubber Roll Clearance

1. Open net wrap cover. Ensure that brake lever is engaged.

2. Remove net material.

3. Turn tractor key to ON position. Turn monitor-controller ON.

4. Ensure that monitor is in NET mode. Turn monitor OFF.

5.
   E85570-UN-16NOV17

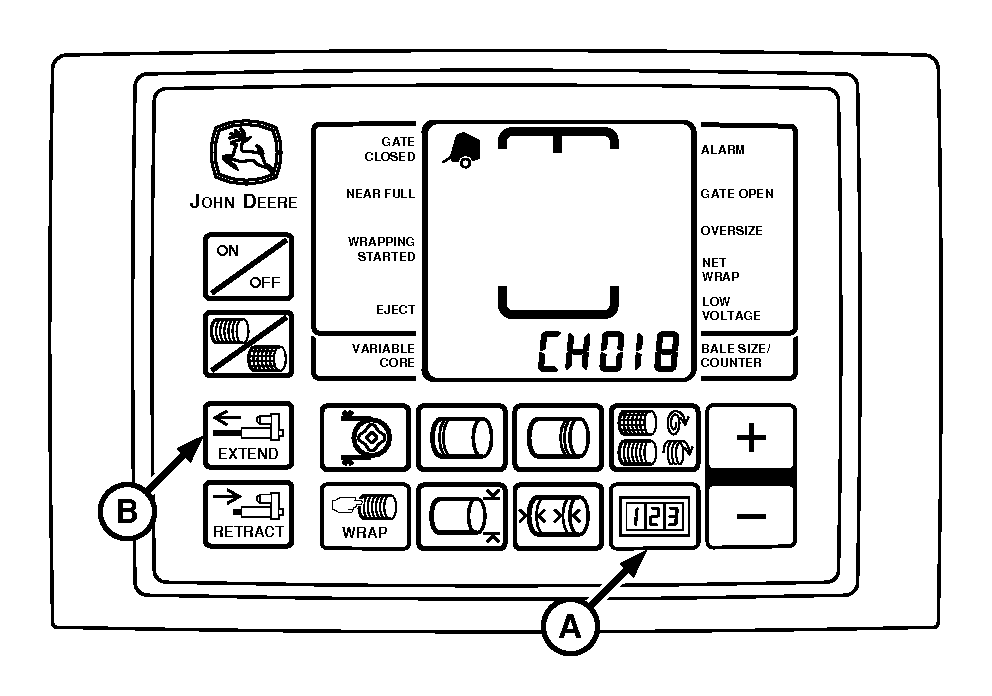

   A - COUNTER Key

   B - EXTEND Key

   To advance to CH018, press and hold the COUNTER key (A) and press PLUS key. Release COUNTER key (A).

---




6. To move the counterknife to the up position, press and hold the EXTEND key (B).

7. To avoid personal injury from unexpected knife movement, disconnect the actuator wire connector or power plug when performing adjustment or working in area.


   E82744-UN-26APR17

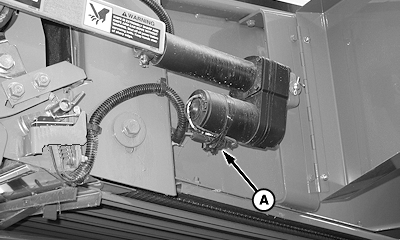

   A - Connector, Net Wrap Wire Harness

   Turn monitor-controller selector switch to OFF. Turn tractor key to OFF position. Remove key. Disconnect monitor-controller power plug from the power source or disconnect plug at the connector (A).

---




8.
   E57351-UN-19JUN09

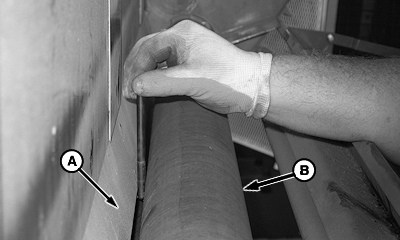

   A - Front Sheet

   B - Rubber Roll

   Check dimension between the front sheet (A) and entire length of rubber roll (B) with drill bits.

   Front Sheet-to-Rubber Roll	Distance	3—6 mm (0.12—0.24 in)

---




9. If dimension is not within specification, bend front sheet to obtain 3—6 mm (0.12—0.24 in) clearance. (See your John Deere dealer.)
