Tractor Convenience Outlet

John Deere 5000, 6000, 7000, or 8000 Series Tractors

RW22076-UN-04DEC92

John Deere 7000 Series Tractor Shown

A - Convenience Outlet

• Manual Hydraulic Tie: Bale size alarm
• Auto-Tie: BaleTrak™ Pro monitor-controller

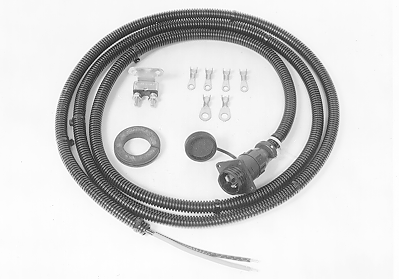

Other Tractor Models Without a Convenience Power Outlet

E39605-UN-27NOV95

Order the convenience outlet kit from your John Deere dealer or qualified service provider. The kit consists of 12 gauge wires and a circuit breaker. When installing the kit, attach the power and ground wires directly to the battery terminal clamp cap screws, only.

If equipped with BaleTrak™ Pro, monitor-controller is polarity sensitive. The red lead from the monitor-controller power input MUST be installed on the positive (+) side of a 12 volt system. Failure to do so causes the monitor-controller not to function.

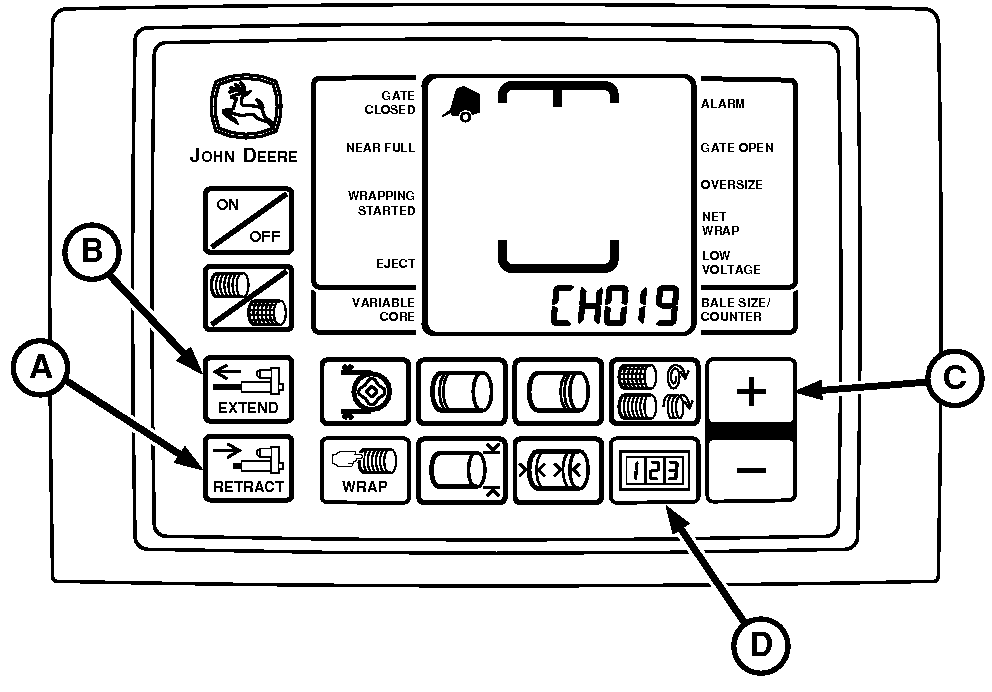

Other Tractor Models with a Convenience Power Outlet, Equipped with BaleTrak™ Pro

E52484-UN-24JUN03

A - RETRACT Key

B - EXTEND Key

C - PLUS Key

D - COUNTER Key

To determine if the convenience power outlet provides adequate power for the BaleTrak™ Pro system, complete the following check:

1. With the tractor engine running and the monitor in twine mode, press and hold the COUNTER key (D) while turning on the monitor.

2. Continue to hold the COUNTER key and press PLUS key (C) until CH019 appears in the digital display.

3. Release COUNTER key (D). View voltage readout.

4. Using the EXTEND key (B), extend the twine actuator slightly.

5. Push and hold the RETRACT key (A) until the actuator stalls out in cut-off position and note voltage displayed.

6. Monitor-controller is polarity sensitive. Red lead from monitor-controller power input MUST be installed on the positive (+) side of a 12 volt system.

   If a convenience outlet is needed, order convenience outlet from your John Deere dealer or qualified service provider.

   If voltage is less than 9.7 volt, install convenience outlet kit. Attach power and ground wires directly to the battery terminal clamp cap screws, only.
