Release Net Wrap Feed Roll Brake

The brake release disengages the net feed rolls. Release the brake when threading net wrap or servicing the net wrap unit.

1.

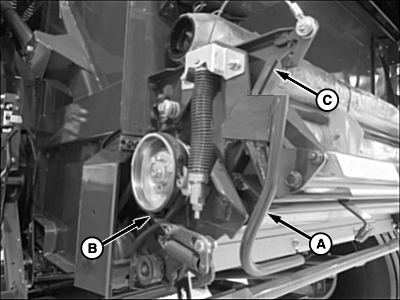

   E83352-UN-06JUN17

   A - Lever

   B - Brake Band

   C - Latch Tab

   Disengage PTO, shut off the tractor engine, and disconnect the monitor-controller power plug from the tractor convenience outlet.

---




2. Open net wrap cover.

3. Move lever (A) outward and upward to release the brake band (B) from the wrap feed roll pulley. Raise the lever until it rests on the top of the latch tab (C).
