Open and Close Net Wrap Cover

1. Be sure that PTO is disengaged, tractor engine is shut off, and monitor-controller power plug is disconnected from tractor convenience outlet before opening cover.

   Cover is spring loaded and moves up quickly when released.

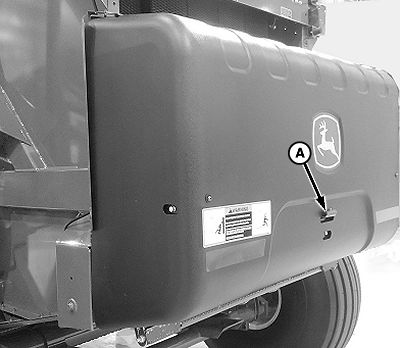

   E84112-UN-21AUG17

   A - Handle

   Pull rearward on handle (A) and raise the cover.

---




2. To close, pull cover down and push shut.
