Twine Feature (Channel 202)
(Turning On and Off)

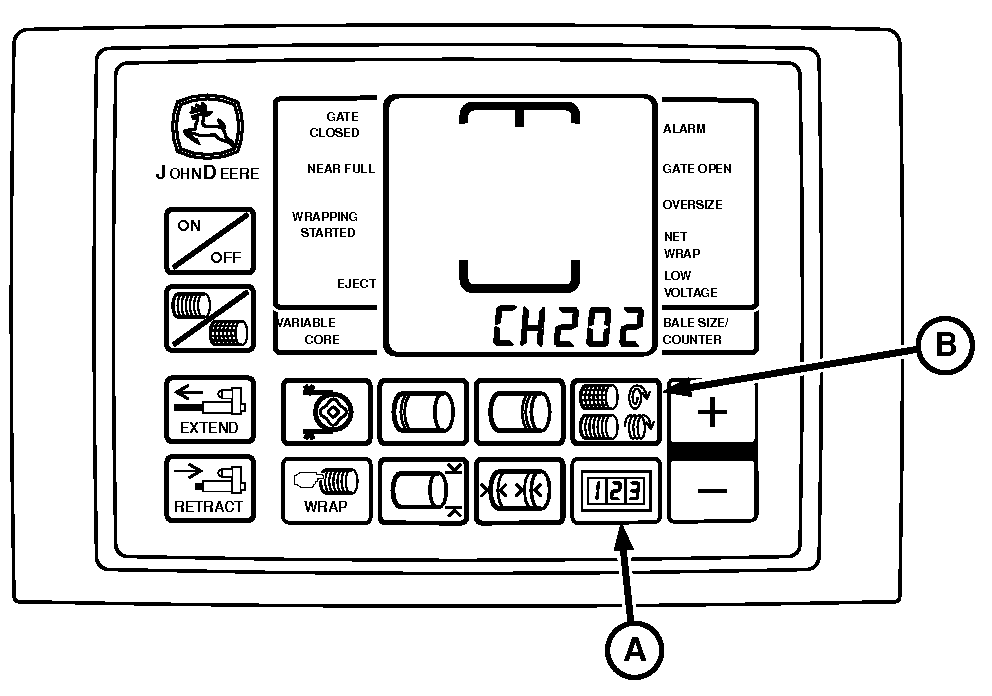

E57095-UN-08MAY09

A - COUNTER Key

B - NUMBER OF WRAPS Key

The twine feature can be turned OFF or ON by accessing Channel 202.

The model number displayed on the monitor-controller must match the baler model number for the twine feature to work correctly.

Turning Feature On and Off:

1. Turn tractor key to ON position. Do not start the tractor.

2. Press and hold both COUNTER key (A) and NUMBER OF WRAPS key (B) while turning monitor-controller to ON. CH201 is displayed.

3. Release both keys. Baler model is displayed.

4. Press and hold COUNTER key (A) and press the PLUS key until CH202 is displayed.

5. Release COUNTER key (A).

6. To change the displayed value to 0 (twine OFF) or 1 (twine ON), press the PLUS or MINUS key.

7. To enter the setting into memory, turn the monitor-controller OFF.

8. To verify the baler model number, turn the monitor-controller ON . Model number is displayed 2 seconds. If displayed baler model number is incorrect (see Changing Baler Model Program [Channel 201] in this section).

9. Turn tractor key to OFF position and remove key.
