Check and Adjust Net Pan Pressure Without Leaf Spring

1.
   E55596-UN-13FEB08


   E55595-UN-13FEB08

   Left-Hand Pan Tube Shown


   E55597-UN-13FEB08

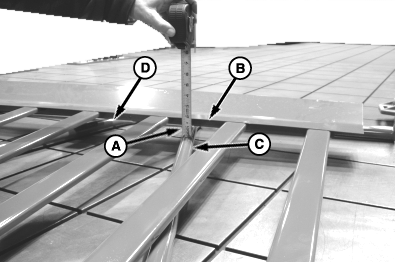

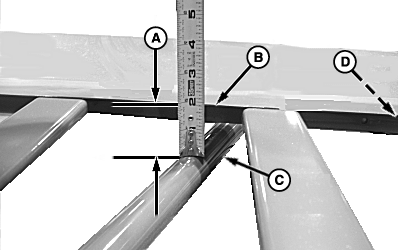

   A - Distance, 52 ± 5 mm (2.0 ± 0.2 in)

   B - Net Pan Angle

   C - Support Tube

   D - Support Tube

   E - Net Pan Channel (near front crossbar)

   Remove net pan from baler. (See Net Wrap Use After Extended Storage in this section.)

---




2. Remove leaf spring by removing two cotter pins. Lay net pan flat on a level surface.

3. Measure distance (A) between top of the net pan angle (B) and top of both support tubes (C) and (D). Distance (A) must be 52 ± 5 mm (2.0 ± 0.2 in).

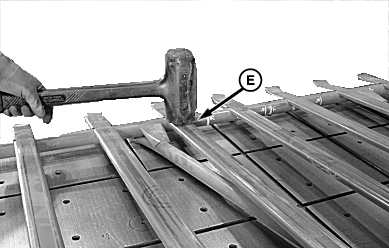

   • If the distance (A) is more than 57 mm (2.2 in), use a dead blow hammer and tap on each net pan channel (E) near the front crossbar. Recheck distance (A) and repeat as needed.
   • If the distance (A) is less than 47 mm (1.8 in), place net pan on floor. Step on the net pan rear crossbar near center and lift net pan angle (B) to bend channels. Recheck distance (A) and repeat at needed.



4. Straighten net pan angle. (See Check And Straighten Net Pan Angle in this section.)

5. Install leaf spring and net pan in reverse order as removed. After installing net pan:

   • See Check And Adjust Lower Net Wrap Guide in Service—Net Wrap section.
   • See Check Belt Tracking in Service—Baler section.
   • See Check And Adjust Net Pan Pressure in Service—Net Wrap section.
