Test Tractor Battery Voltage

1.
   E84879-UN-09OCT17

   From the baler application main page, select the Settings softkey.

---




2.
   E64643-UN-11MAY12

   Select the Baler Diagnostic softkey.

---




3.
   E85173-UN-25OCT17

   Select the Next Page softkey to access diagnostics page 5.

---




4.

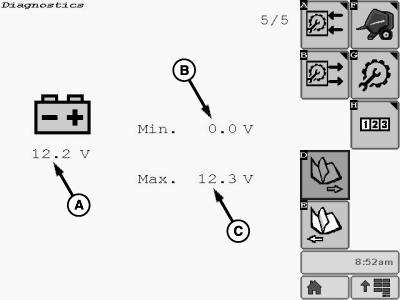

   E85236-UN-26OCT17

   A - Current Battery Voltage

   B - Minimum Battery Voltage

   C - Maximum Battery Voltage

   Diagnostics page 5 shows the current tractor battery voltage (A). The minimum (B) and maximum (C) battery voltage are refreshed each time the monitor is switched off. Battery voltage must be 11.2—15.8 V.

---




5.
   E84866-UN-05OCT17

   Select the Main Page softkey to return to the baler application main page.

---
