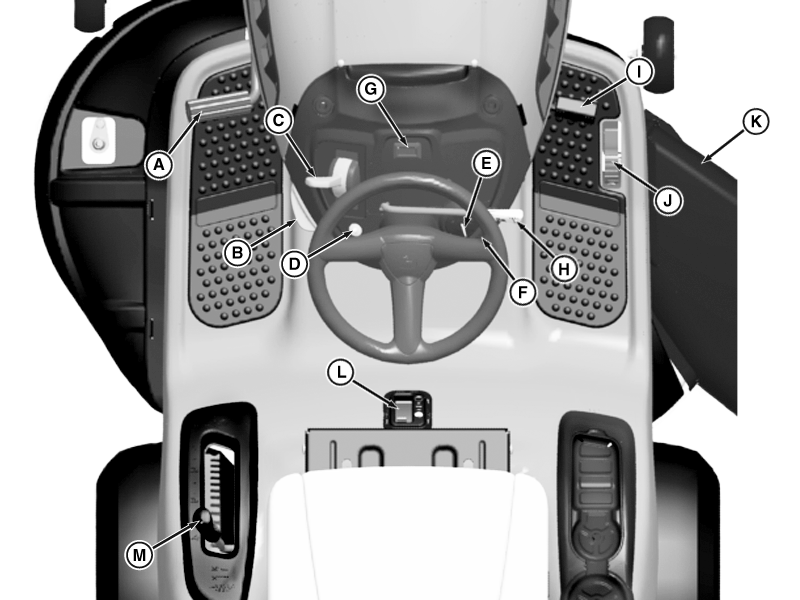

Operator Station Controls (X125, X145)

PY19034-UN-07AUG13

Machine shown with step 2 shielding kit installed.

A - Brake Pedal

B - Park Brake Lever Lock

C - Throttle/Choke Lever

D - Reverse Implement Option (RIO) Switch

E - Key Switch

F - Cruise Control Lever (X145)

G - Service Reminder/Hour Meter

H - Attachment Engagement Lever

I - Forward Travel Pedal

J - Reverse Travel Pedal

K - Deflector Shield

L - Fuel Level Window

M - Attachment Lift Lever
