Cleanout Areas

Primary areas that must be inspected and cleaned on the machine include (See Safety Label Section):

1.
   GXAL41967-UN-04MAR13

   Single cylinder shown


   GXAL41968-UN-04MAR13

   Twin cylinder shown

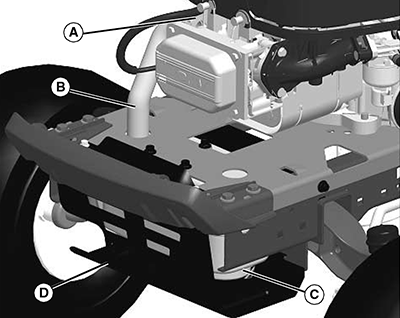

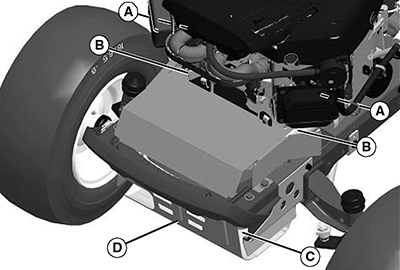

   Exhaust manifold (A), muffler pipe (B), muffler (C) and muffler shield (D).

---




2.
   GXAL41969-UN-04MAR13

   Single cylinder shown


   GXAL41970-UN-04MAR13

   Twin cylinder shown

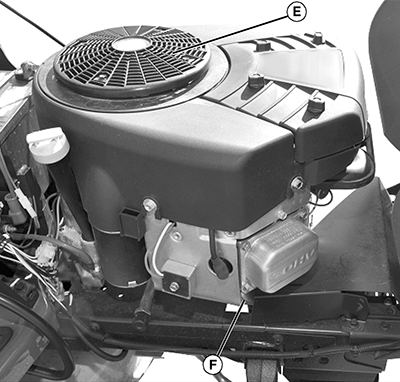

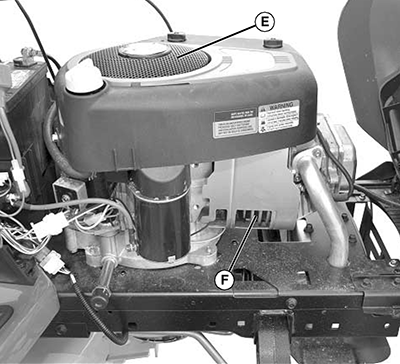

   Engine intake screens (E), cooling fins (F), and oil cooler (if equipped).

---




3.
   GXAL41971-UN-04MAR13

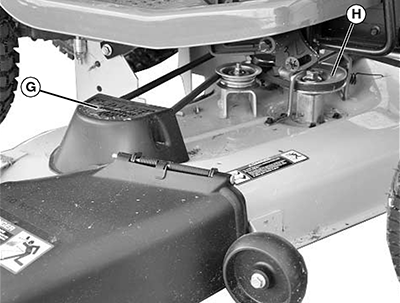

   Top of mower deck, under shields (G), including spindle (H) and belt areas.

---




4.
   GXAL41972-UN-04MAR13

   Shown with wheel removed

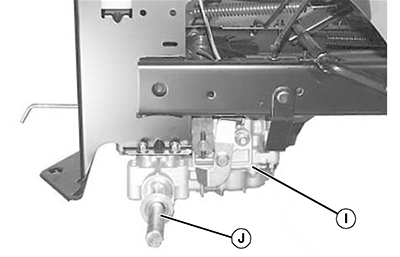

   On or near transmission (I) and driveline (J).

---




5.
   GXAL41973-UN-04MAR13

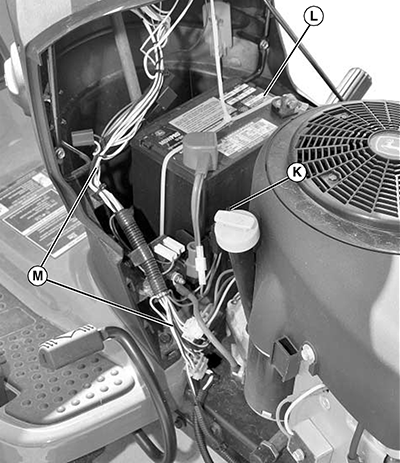

   Under left side panel near fuse block (K), and all wiring, including the battery (L) and related wiring harnesses (M).

---
