Using Mulch Cover 107 cm (42 in.) and 122 cm (48 in.) Mower Decks (If Equipped)

CAUTION: Rotating blades are dangerous. Before adjusting or servicing mower:

Disconnect spark plug wire(s) or battery negative (-) cable to prevent engine from starting accidently.

Always wear gloves when handling mower blades or working near blades.

NOTE: Remove mulch cover for side discharge operation.

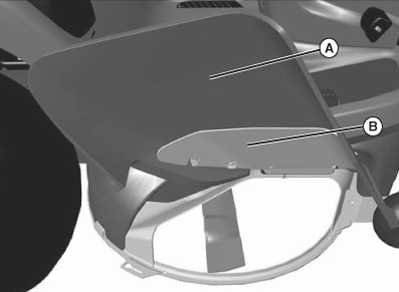

  1. GXAL42555
    GXAL42555-UN-19MAR13

    107 cm (42 in.) used for illustration.

    Raise discharge chute (A) and metal deflector (B).

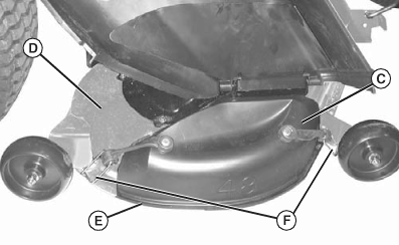

  2. GXAL42556
    GXAL42556-UN-19MAR13

    Install mulch cover (C) onto mower deck (D). Mulch cover lip (E) must be seated in mower deck groove.
  3. Hook mulch cover to mower deck:
    • On 122 cm (48 in.) deck, wheel bracket grooves (F).

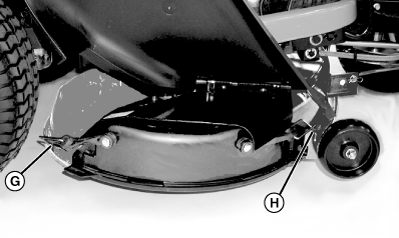

    • GXAL42557
      GXAL42557-UN-19MAR13

      On 107 cm (42 in.) deck, slot (G) on left side and wheel bracket hole (H).
  4. Lower discharge chute and metal deflector.
  5. Make sure bagger blades are not installed for maximum mulching operation.

MX00654,00003B7-19-20130807
