Installing Mower Deck

  1. Park machine safely. (See Parking Safely in SAFETY section.)

  2. Put attachment lift lever in the transport position.

  3. Slide mower under machine.

  4. Put wood blocks under each side of mower deck.

  5. Put attachment lift lever in lowest position.

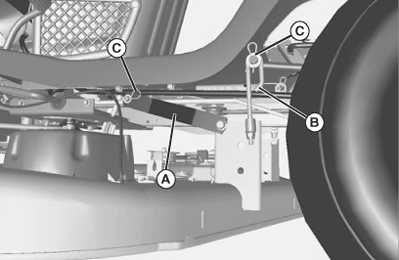

  6. GXAL42585
    GXAL42585-UN-19MAR13

    Fasten rear draft arm (A) and adjustable lift link (B), on each side, with washers and spring locking pins (C).


  7. IMPORTANT: To prevent clutch damage, make sure front draft rod is installed correctly. Secure rod with washer and spring locking pin on the left side of mower deck bracket.

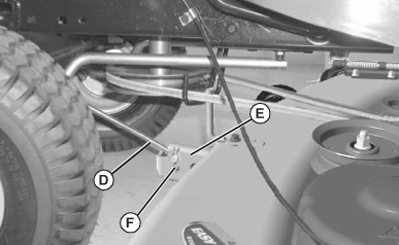

    GXAL42586
    GXAL42586-UN-19MAR13

    107 cm (42 in.) mower deck shown.

    Install front draft rod (D) into mower deck bracket (E) and secure with washer and spring locking pin (F) on the left side of bracket as shown.


  8. CAUTION: Component is spring-assisted and under tension. Injury can occur if spring-assisted component is released suddenly.

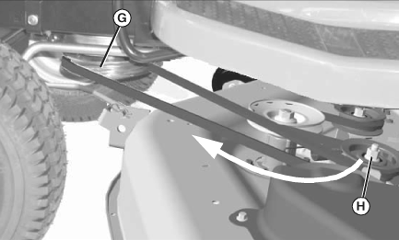

    GXAL42587
    GXAL42587-UN-19MAR13

    107 cm (42 in.) mower deck shown.

    Put mower drive belt on engine drive sheave (G).

    • On 122 cm (48 in.) mower decks: Put a 15 mm closed wrench or a socket on the idler sheave nut (H) and rotate clockwise, moving idler sheave and tensioning arm toward front of tractor. Hold while installing belt on drive sheave.

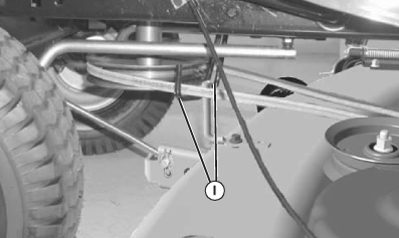

    • GXAL42588
      GXAL42588-UN-19MAR13

      On 107 cm (42 in.) mower deck: Make sure belt is routed through both belt guides (I).


  9. Remove wood blocks from both sides of mower deck.

  10. On machines with 107 cm (42 in.) mower deck: Attach mower engagement drive cable.

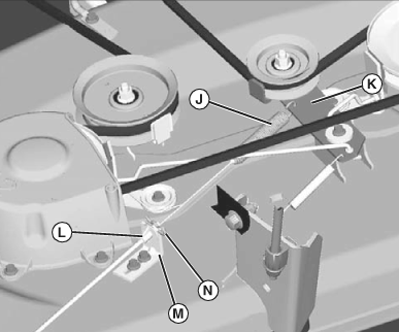

    • GXAL42589
      GXAL42589-UN-19MAR13

      107 cm (42 in.) mower deck only.

      Route cable under mower belt and brake rod and attach cable spring (J) to idler sheave bracket (K).
    • Pull out on cable (L), align black end of cable with slot in bracket (M) and release cable into slot. Secure with spring locking pin (N).


  11. Level mower deck.

  12. Install rear machine shields and engine drive sheave shields (see “Removing and Installing Machine Shields” in the Service Mower section).

MX00654,00003C0-19-20130624
