Removing and Installing Closeout Panels

Each closeout panel has two mounting tabs on the flat rear flange, and a tab hole at the lower front corner. The mounting tabs slide into attachment features at each side of the machine cowl to secure the rear of each panel, a screw and washer secures each panel at the front.


Removing panels:

  1. Tilt hood forward.

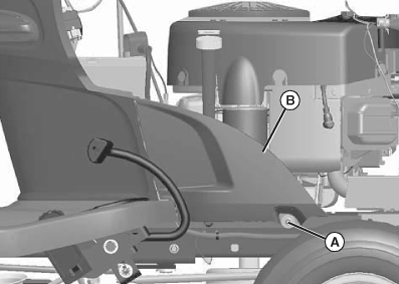

  2. GXAL42606
    GXAL42606-UN-19MAR13

    Right side shown.

    Remove retaining screw (A) and flat washer securing lower front corner of closeout panel (B) to frame.


  3. Rotate closeout panel away from tractor. Mounting tabs will slide out of attachment features in machine cowl.


Installing panels:

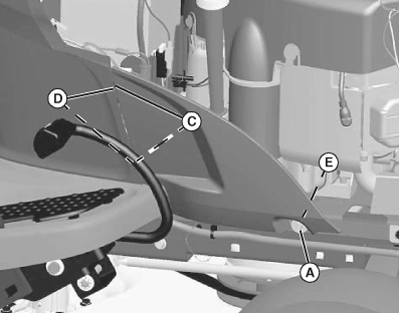

  1. GXAL42607
    GXAL42607-UN-19MAR13

    Right side shown.

    Align mounting tabs (C) at rear of closeout panels with top of attachment features (D) at front of machine cowl.


  2. Install washer and retaining screw (A) in hole (E) on closeout panel.

  3. Lower hood.

MX00654,00003C6-19-20130624
